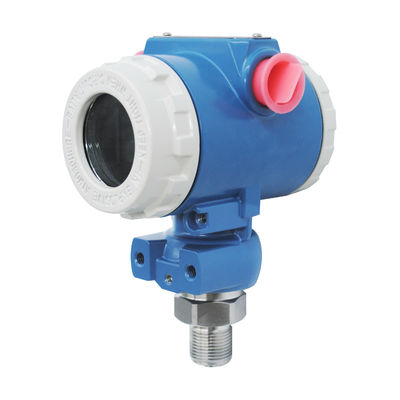

Large Image :  HART differential pressure transmitter/sensor, DP transmitter good price

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001,SIL3 ,Explosion proof
Model Number: AT3051

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Packaging Details: carton or as your required
Delivery Time: 3-5work days
Payment Terms: L/C, Western Union, T/T
Detailed Product Description
Power Supply: 24VDC Accuracy: 0.1%
Output Signal:: 4-20mA Protocol: HART
Process Connection: 1/2-14NPT(M) Electrical Connection: 1/2NPT Female
Display: LCD Indicator Name: Differential Pressure Transmitter

HART differential pressure transmitter/sensor, DP transmitter good price

Products show and detais

4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price

4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price

HART differential pressure transmitter/sensor, DP transmitter good price

Technical Parameter:

Process fluid: liquid,gas,vapor
Display:4 digits programmable&0-100%bargraph
Application:differential pressure,gauge pressure, absolute pressure
Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum)
Turn down ration:1:100
Accuracy:±0.075% of span
Stability:±0.15% of URL 2 years
Working temperature:-25 to 950C
Display unit:standard 22 engineer unit,4 digits programmable for special unit
Keyboard:3 keys from internal for programming and outout setting
Current output:4-20mA 2 wires Hart Protocol ,Rohm=(Vdc-9)*50
Power supply:9-36VDC
Damping adjustment:0-32 second
Max pressure:40MPa
Respond time:200ms
Mounting:bracket on 2” pipe
Humidity limits:0 to 100% relative humidity
Turn on time:2 seconds with minmum damping
Zero calibration:automatic zero calibration by press button
Electrical connections:1/4”NPT (M20 Conduit threads)
Temperature effect:±0.18% of span per 200C
Vibration effect:±0.05% of URL per g to 200 Hz in any axis
EMI/RFI effect:follow SAMA PMC 33.1 from 20 to 1000MHz and for field strengths up to 30V/m
Process connections:1/4-18NPT, 1/2-14NPT(with adapter)
Ambient temperature:-25 to 800C
Dimension:102mm(W)*188mm(H)*130mm(D)
Weight:5.5kg

smart pressure transmitter new pressure measuring instrument

Material:

Flange /Adapters:stainless steel 304/316
Drains/Vents:stainless steel 304/316
Diaphragms:stainless steel 316L/Hastelloy B/Hastelloy C/Monel/Tantalum
Wetted O-Rings: Buna N/Viton/PTFE
Bolts&nuts:carbon steel/stainless steel 316
Mounting Bracket:carbon steel/stainless steel 304/316
Name/Tag plate:stainless steel 304/316
Converter housing:low copper cast aluminum alloy with polyurethane, light blue paint
Fill fluid:silicone/fluorine oil
Enclosure:IP65
Intrinsically safe:ia II C T6
Explosion proof: d II B T5

smart pressure transmitter new pressure measuring instrument

HART differential pressure transmitter/sensor, DP transmitter good price

HART differential pressure transmitter/sensor, DP transmitter good price

HART differential pressure transmitter/sensor, DP transmitter good price

HART differential pressure transmitter/sensor, DP transmitter good price

HART differential pressure transmitter/sensor, DP transmitter good price

HART differential pressure transmitter/sensor, DP transmitter good price





Our company





Order sheet

Name Specification code Explanation
3051DP

Differential Pressure Transmitter



  3 1.3-7.5KPa
4 6.2-37.4KPa
5 31-186.8KPa
6 117-690KPa
7 345-2068KPa
8 1170-6890KPa
9 3480-20680KPa
0 6890-41370KPa
Output Signal E analog type 4-20mA
S 4-20mA, HART Protocol Digital Communication





Wetted Parts Material

  Flange/Joint Exhaust/Drain Valve Diaphragm
22





Stainless Steel





Stainless Steel

316L Stainless Steel
23 Hastelloy C-276
24 Tantalum



Mounting Bracket

B1 Tube-type Curved Bracket (Tube ODΦ50~Φ60)
B2 Board- type Curved Bracket
B3 Tube-type Straight Bracket (Tube ODΦ50~Φ60)

Display Header

(optional)

M2 Linear Pointer Header (0~100% scale)
M3 Square Root Instruction Header(0~100% scale)
M4 LCD Header(0~100% linear display)



Process Flange

D The liquid discharge / exhaust at the back
D1 The liquid discharge / exhaust at the side top
D2 The liquid discharge / exhaust at the side bottom
Flange Joint J “D-shaped” Joint with “ M20*1.5” External thread
  N Joint with 1/2-14NPT taper pipe thread waist type





HART differential pressure transmitter/sensor, DP transmitter good price



HART differential pressure transmitter/sensor, DP transmitter good price



Site application









HART differential pressure transmitter/sensor, DP transmitter good price



Our Services

How about our service?



trademanager online service:8:00AM~10:00PM, Monday ~ Sunday

skype ID:summer.cao39

telephone:+86 13145357370

warranty:12months
