Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001
Model Number: ATWLM

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD200
Packaging Details: carton or as your required
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Range: 0-500M(optional) Minimum Indication: 1mm
Structure Material: Steel/Common Material Probe Diameter: 14mm/25mm
Application: Sound Level Meter Product Name: Well Depth Meter, Water Level Meter

Factory Low price deep water well cable ruler level meter level indicator / underground drilling water level measuring

Product Description

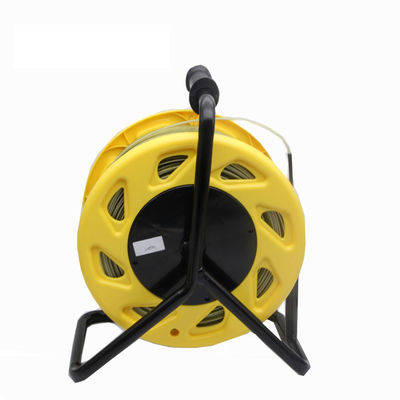

Cable Water Level Meter provides the most accurate method of measuring the water level, typically used for measuring wells, drilling and pipe’s water level. The instrument can be used during construction, can also be used as a long-term safety monitoring of the project.





Ground receiving equipment - water level meter, by the probe, cable, the receiving system and winding drive components.

l. Probe parts: stainless steel, installed the water resistance point of contact in inside , when the probe contact the water, it will turn on the receiving system automatically, when the probe contact out of the water , the system will automatically turn off the receiver .

2. Portion of the cable: plastic technology combined by cables and wires, both to prevent the steel rulerrust, but also simplifies the operation process, the readings greater ease and accuracy. Minimum scale: 1cm.

3. Receiving parts of the system: audio and peak indicator, the sound from the buzzer to send a continuous beep sound, the peak indicated as voltmeter pointer indicates both selected by a toggle switch, no matter what kind of reception system accuracy, readings are consistent.

4. The winding drive parts: the winding disc and bracket, the receiving system and battery all placed in the core of the wire spool cavity, the cavity around the steel ruler cable.







Measure range :



SIZE: 30M, 50M, 100M, 150M, 200M, 250M, 300M, 400M, 500M





Item Parameters
Model TLC-30 , TLC-50 , TLC-100,TLC-150,TLC-200
Water level Maximum cable range (depending on model), scale reading, resolution 1mm
Temperature Measuring range 0-80 ° C, digital display, error 0.5 ° C, resolution 0.1 ° C
Conductivity Measuring range 0-30000μm/cm, digital display, error 1%, resolution 1μm/cm

Temperature

compensation

Automatic linear compensation based on 25 °C
working environment Ambient temperature -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference
shell material ABS reel and handle, metal frame
Wire reel specification Color: red, material: ABS, diameter: 310mm
Cable specification Copper core enameled wire is made of special PE compound, width: 12mm * thickness 2mm
Power supply DC 9V battery
Signal display Indicator light, buzzer, digital tube digital display
Probe specifications Graphite electrode, 316 stainless steel sheath, diameter 18mm * length 180mm
Packing Length 36cm * width 26cm * height 44cm













Detailed Images











Product Overviews



Certificate





10 Years ALIBABA Verified Member :





Company Information



























Application Show







FAQ

1.You are trading company or direct producer ?

We are the direct producer for 25 years , not trading company .





2. What is the certification do you have ?

We have CE , ISO9001 ,SIL3 etc .



3. What is the delivery time ?

Our delivery time is within 3-5 after we get your payment ; for large qty mass order , the time should be confrimed again for you



4.How about your package ?

Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .



5.How about the payment terms ?

You can choose T/T, Western union , or you can choose by alibaba -credit insurance .



6. How long about the warranty time ?

Normally 12 months after customer receive the goods , since we are producer the time can be longer if you require .
