Industrial Differential Pressure Transmitter Lower Price with Hart Protocol

China Industrial Differential Pressure Transmitter Lower Price with Hart Protocol supplier

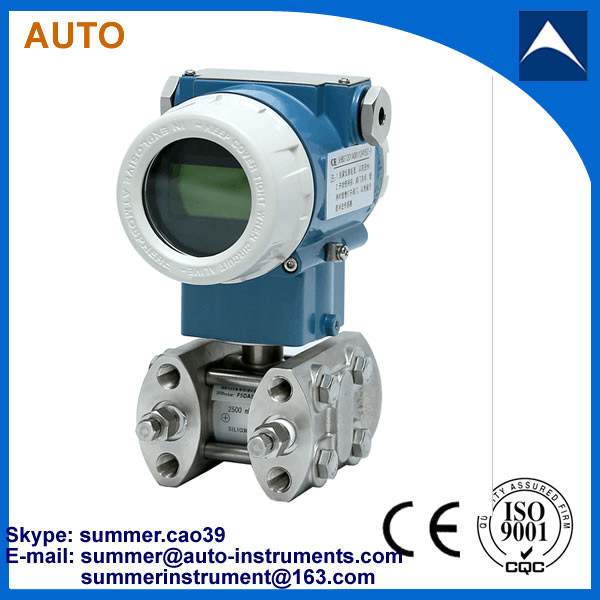

Large Image :  Industrial Differential Pressure Transmitter Lower Price with Hart Protocol

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: ISO9001:2000,CE
Model Number: AT3051

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $200/PC
Packaging Details: carton
Delivery Time: 3-5days after confirm order
Payment Terms: T/T,Paypal,L/C,
Supply Ability: 1500
Detailed Product Description
Output Signal: 4-20mA/HART Power Supply: DC24V (12~36V)
Operating Temperature: -40 To +140C Skype: Summer.cao39
Name: Differential Pressure Transmitter Application: Liquid, Gas, Vapor
Accuracy: 0.075 Or 0.5 Water Proof: IP65/IP68

    Industrial Differential Pressure Transmitter Lower Price with Hart Protocol



Introduction

  Differential pressure transmitter is a measure of the difference between the two ends of the

transmitter ,output standard signal (eg 4 ~ 20mA, 1-5V) differential pressure transmitter and

pressure transmitter with the general difference is that there are two pressure ports,  the differential pressure transmitter is generally divided into positive and negative terminal end,

under normal circumstances, Positive pressure side pressure should be greater than the

negative pressure section.











Features:

 1. Process FluidLiquid, Gas, Vapor

 2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure

 3. Working Temperature: -25 to +95C

 4. Current Output: 4 - 20 mA   2 wires   Har t Protocol

 5. Power Supply: 24VDC

 6. Ambient Temperature: -25 to +240C

 7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT

 8. Electrical Connections: 1/2”NPT or M20*1.5

 9. Enclosure:IP65

 10.Intrinsically Safe: ia II C T6

 11.Explosion proof: d II B T5



Differential pressure transmitter for measurement of liquids, gases and steam level,density and

pressure, and then convert it into 4- 20mA DC current signal output. 3051DP BRAIN can also

be handheld or CENTUM CS / μXL or HART 275 handheld  communicate with each other,

through the setting and monitoring them.

.jpg

 01, advanced terminals, the unique 30 degree angle

Capacitance LCD display 3051DP pressure transmitter made in China .jpg

 02, high-quality cited pressure fittings (stainless steel variety of medium, compatible with a variety of media, performance and stability)

Capacitance LCD display 3051DP pressure transmitter made in China1.jpg

 03, LCD display meter intelligent, clear reading.

Hot sales LCD display HART protocol differential pressure transmitter  .jpg



 04,High precision sensor, diaphragm made of 316L



High reliability differential pressure transmitter for liquid gas made in China1.jpg

.jpg

Name

Specification code

Explanation

3051GP

      DP



Pressure Transmitter

 Differential pressure transmitter



2



(0.0013-0.013)bar



3

(0.013-0.075)bar

4

(0.062-0.374)bar

5

(0.31-1.868)bar

6

(1.17-6.9)bar

7

(3.45-20.68)bar

8

(11.7-68.90)bar

9

(34.8-206.8)bar

0

(68.9-413.7)bar

Output Signal

E

analog type 4-20mA

S

4-20mA, HART Protocol Digital Communication





 Wetted Parts

Material



Flange/Joint

Exhaust/Drain Valve

Diaphragm

22





Stainless Steel





Stainless Steel

316L Stainless Steel

23

Hastelloy C-276

24

Tantalum





Mounting Bracket

B1

Tube-type Curved Bracket (Tube ODΦ50~Φ60)

B2

Board- type Curved Bracket

B3

Tube-type Straight Bracket (Tube ODΦ50~Φ60)

Display Header

(optional)

M2

Linear Pointer Header  (0~100% scale)

M3

Square Root Instruction Header(0~100% scale)

M4

LCD Header(0~100% linear  display)



Process Flange

D

The liquid discharge / exhaust at the back

D1

The liquid discharge / exhaust at the side top

D2

The liquid discharge / exhaust at the side bottom

 Flange Joint

J

“D-shaped” Joint with “ M20*1.5” External thread



N

Joint with 1/2-14NPT  taper pipe thread  waist type



 .jpgworkshop show.jpg


.jpg



 Package Size: Length200mm *Width 230mm *high 280mm

Packaged Weight: 4.5 kg




Transmitter series

.png





  Why choose me?

 1.Flexible:what you want, what we make.



 2.Creative:R&D hi-tech products for the market.



 3.Professional:20 years experience on  R&D pressure      transmitter products since1994.



  4.Responsible:The warranty period of 18months.



  5.Competitive price and good quality.

  Customers's business is our business.

contact me.jpg



Installation:





installation method.jpg
