Differential Pressure Level Transmitter (Flange Mounting)

China Differential Pressure Level Transmitter (Flange Mounting) supplier
Differential Pressure Level Transmitter (Flange Mounting) supplier Differential Pressure Level Transmitter (Flange Mounting) supplier Differential Pressure Level Transmitter (Flange Mounting) supplier Differential Pressure Level Transmitter (Flange Mounting) supplier Differential Pressure Level Transmitter (Flange Mounting) supplier

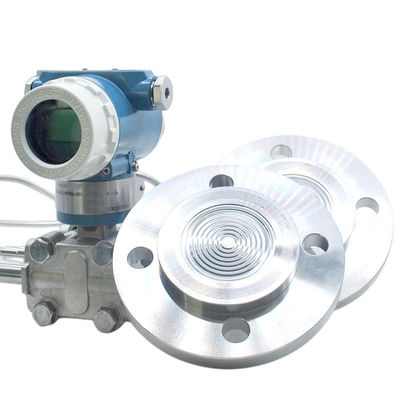

Large Image :  Differential Pressure Level Transmitter (Flange Mounting)

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: ISO9001:2000,CE
Model Number: AT3051

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: $120/PC
Packaging Details: carton
Delivery Time: 3-5days after confirm order
Payment Terms: T/T,Paypal,L/C,
Supply Ability: 1500
Contact Now
Detailed Product Description
Output Signal: 4-20mA/HART Power Supply: 9-36V DC
Operating Temperature: -40 To +140C Skype: Summer.cao39
Name: Level Transmitter Process Fluid: Liquid, Gas, Vapor

Differential Pressure Level Transmitter (Flange Mounting)










Product Description



Differential Pressure Level Transmitter measures the level of liquids based on the principle of static pressure, which outputs analog or digital signal 4~20mA and is used for the liquid measurement in industrial process control and metering. With level mounting flanges, the Differential Pressure Level Transmitter can be mounted directly to the tank to be measured, and provide accurate measurement of the pressure, differential pressure and liquid level of various tanks.

EST4300 Differential Pressure Level Transmitter has two connection ways, direct mount and remote mount. Both connections are engineered to meet a wide variety of measurement needs.

  1. Direct mount connections offer simple installation for mounting transmitters directly to the vessel eliminating the need for additional transmitter mounting provisions.
  2. Remote mount connections consist of a seal attached to a transmitter via capillary tube and are used in tuned or balanced systems, high temperature installations and remote transmitter mounting applications

Differential pressure transmitter can be used for level measurement in most cases; however, a Flange Mounting Differential Pressure Level Transmitter is needed for any of the following situation below.

  • Where the process liquids are prone to solidifying or crystallizing
  • Where the process liquids are too thick or contains suspended solid
  • Where the process liquids can easily block the impulse lines
  • Where the process liquids are hot or corrosive, and cannot be measured directly
  • Where the process liquids are food or other materials that cannot be contaminated

Features

  • High level stability and precision
  • Excellet overload capacity
  • Enhanced self-diagnostic capacity
  • Independent Zero & Span Adjustment
  • Rugged construction for shock resistance
  • Digital compensation technology compensating for temperature and static pressure
  • No mechanical transmission parts, less maintenance to minimize downtime
  • Perfect local and remote set-up and calibration function

.jpg

Application

  • Electricity
  • Water Conservancy
  • Metallurgy
  • Environmental Protection
  • Petrifaction
  • Pharmacy
  • Paper-making
  • Furnace

Parameter

  • Max ref accuracy:±0.075%calibration range
  • Stability:6months,±0.1%URL
  • Static pressure:13.79Mpa
  • Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
  • Stability:6months,±0.1%URL
  • Current output:4 - 20 mA 2 wires Har t Protocol
  • Power supply:24VDC
  • Damping time constant:time constant is adjustable, in 0.1 second increments from aminimum to 16 seconds.

Order sheet

Name Specification code Explanation
3051GP   Double-flange Remote Pressure transmitter
  4 (0.062-0.374)bar
5 (0.31-1.868)bar
6 (1.17-6.9)bar
7 (3.45-20.68)bar
8 (11.7-68.90)bar
Output Signal E 4-20mA
S 4-20mA, HART Protocol Communication



Installation

flange

C1 1 (DN25)
H5 2 (DN50)
A8 3(DN80)
B10 4(DN100)





Wetted Parts

Material

  Flange/Joint Exhaust/Drain Valve Diaphragm
22





Stainless Steel





Stainless Steel

316L Stainless Steel
23 Hastelloy C-276
24 Tantalum



Display Header

(optional)

M2 Linear Pointer Header (0~100% scale)
M3 Square Root Instruction Header(0~100% scale)
M4 LCD Header( linear display)



capillary length

a 1-2m
b 2-4m
c 4-6m





Type

1 Flange type
2 Insert the cartridge
3 Sanitary clamp type
