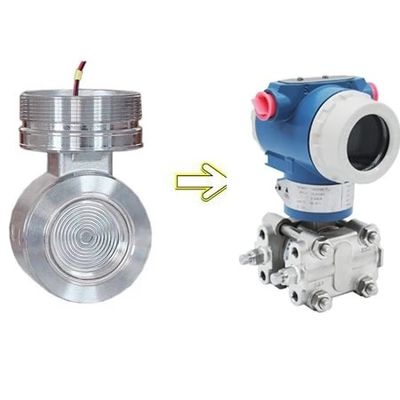

Large Image :  High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001,SIL3 ,Explosion proof
Model Number: AT3051

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: carton or as your required
Delivery Time: 3-5work days
Payment Terms: L/C, Western Union, T/T
Contact Now
Detailed Product Description
Power Supply: 24VDC Accuracy: 0.1%
Output Signal:: 4-20mA Protocol: HART
Process Connection: 1/2-14NPT(M) Electrical Connection: 1/2NPT Female
Display: LCD Indicator Name: Differential Pressure Transmitter

Product Description

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus

Introduction

Differential pressure transmitter/pressure transmitter is a measure of the difference between the two ends of the transmitter ,output standard signal (eg 4 ~ 20mA, 1-5V) differential pressure transmitter and pressure transmitter with the general difference is that there are two pressure ports, the differential pressure transmitter is generally divided into positive and negative terminal end, under normal circumstances, Positive pressure side pressure should be greater than the negative pressure section.

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus



Features:

1. Process Fluid: Liquid, Gas, Vapor

2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure

3. Working Temperature: -25 to +95C

4. Current Output: 4 - 20 mA 2 wires Har t Protocol

5. Power Supply: 24VDC

6. Ambient Temperature: -25 to +240C

7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT

8. Electrical Connections: 1/2”NPT or M20*1.5

9. Enclosure:IP65

10.Intrinsically Safe: ia II C T6

11.Explosion proof: d II B T5



Pressure Transmitter Order Sheet
Item
Code
Specification
AT3051DP
Differential Pressure Transmitter
AT3051GP
Gauge Pressure Transmitter
Measurement Range
2
0-0.1~1.5 Kpa
3
0~7.5 Kpa
4
0~37.4 Kpa
5
0~186.8 Kpa
6
0~690 Kpa
7
0~2068 Kpa
8
0~6890 Kpa
9
0~20680 Kpa
Output
S
4-20mA, HART Protocol, Linear output
J
4-20mA, HART Protocol, Square root output(Range≥5kpa)
Diaphragm Material
/ Fill Fluid
2
Stainless Steel 316L Silicone Oil
3
Hastelloy C(range >3Kpa) Silicone Oil
A
Stainless Steel 316L Fluorine oil
Drain hole
B
Back of process flange or none
U
Process flange side upper
L
Process flange side lower
Wetted O-ring Material
7
Buna-N (NBR)
6
Viton (FKM) (Temperature ≥-20℃)
5
Low Temperature Viton (FKM-GFLT)
Process Connection
H
1/4'' NPT F
Maximum Pressure Limit
1
14 Mpa( 4Mpa for range 2)
3
25 Mpa
5
32 Mpa
Cable Entry
1
M20*1.5 or 1/2'' NPT
Mounting Bracket
B00
None
B01
Tube-type Curved Bracket (carbon steel)
B02
Wall mounting bracket (carbon steel)
B03
Tube-type Flat Bracket (carbon steel)
B04
Tube-type Curved Bracket (stainless steel)
B05
Wall mounting bracket (stainless steel)
B06
Tube-type Flat Bracket (stainless steel)
Optional
d
Intrinsically safe type, Flameproof (Exd IIC T4~T6)
i
Intrinsically safe (Exia IIC T4~T6)
M3
LCD display
D1
Stainless steel drain valve or screw (2pcs)
C1
1/2'' NPT female waist flange (2sets)
C12
1/2'' NPT-M20*1.5-Φ14 pressure pipe (2sets)
C2
M20*1.5 male thread T joint (2sets)
C21
M20*1.5 T joint -Φ14 pressure pipe (2sets)
K1
Degreasing treatment



Details:

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus



Dimension



High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus

High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus



Site application



High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus





High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus



ATEX CE,ISO9001 Explosion certification



High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus



Other type pressure transmitter



High Accuracy Capacitive Differential Pressure Transmitter Gauge Pressure Absolute Pressure With Hart Profitbus
