Product Details:
Payment & Shipping Terms:
|
| Output Signal: | 4-20mA+HART | Accuracy: | 0.1% |
|---|---|---|---|
| Communication: | HART | Product Name: | Digital Pressure Transmitter |
| Power Supply: | 24VDC | Process Connection: | 1/2-14NPT |
| Skype: | Summer.cao39 |

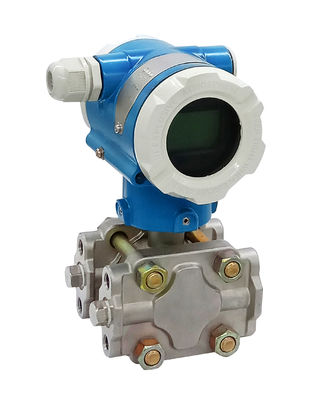

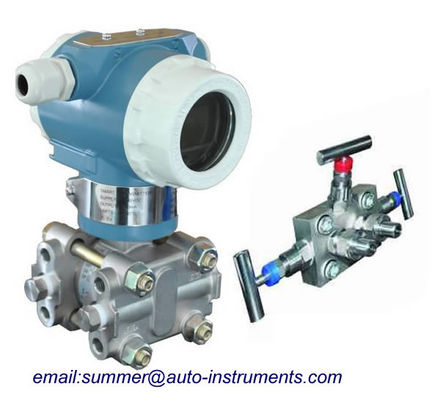

YANTAI AUTO 3051 Differential Pressure Transmitter 4-20mA output English LCD display
Differential Pressure transmitter
Introduction
The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Features:
1. Process Fluid: Liquid, Gas, Vapor
2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5
Dimension
Ordering Sheet
| Name | Specification code | Description | ||
|
AT3051GP AT3051DP |
Pressure Transmitter Differential Pressure Transmitter |
|||
|
Measurement Range |
3 | (0.013-0.075)bar | ||
| 4 | (0.062-0.374)bar | |||
| 5 | (0.31-1.868)bar | |||
| 6 | (1.17-6.9)bar | |||
| 7 | (3.45-20.68)bar | |||
| 8 | (11.7-68.90)bar | |||
| 9 | (34.8-206.8)bar | |||
| 0 | (68.9-413.7)bar | |||
|
Output Signal |
E | analog type 4-20mA | ||
| S | 4-20mA, HART Protocol | |||
|
Wetted Parts Material |
Flange/Joint | Exhaust/Drain Valve | Diaphragm | |
| 22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel | |
| 23 | Hastelloy C-276 | |||
| 24 | Tantalum | |||
|
Mounting Bracket |
B1 | Tube-type Curved Bracket (Tube ODΦ50~Φ60) | ||
| B2 | Board- type Curved Bracket | |||
| B3 | Tube-type Straight Bracket (Tube ODΦ50~Φ60) | |||
|
Display Header (optional) |
M2 | Linear Pointer Header (0~100% scale) | ||
| M3 | Square Root Instruction Header(0~100% scale) | |||
| M4 | LCD Header(0~100% linear display) | |||
|
Process Flange |
D | The liquid discharge / exhaust at the back | ||
| D1 | The liquid discharge / exhaust at the side top | |||
| D2 | The liquid discharge / exhaust at the side bottom | |||
| Flange Joint | J | “D-shaped” Joint with “ M20*1.5” External thread | ||
| N | Joint with 1/2-14NPT taper pipe thread waist type | |||
Installation Site--differential pressure transnitter
Different Models Available
Company Production
Q: Are you trading company or manufacturer ?
A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince, China.
A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer. But if you need goods urgently, we can arrange expedited production.
A: Yes, we could provide the sample. But, you need to pay for the cost.
A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.
A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
CE CERTIFICATE AND ISO9001
Please contact me for price, thank you very much.
