Product Details:
Payment & Shipping Terms:
|
| Output Signal: | 4-20mA+HART | Accuracy: | 0.1% |
|---|---|---|---|
| Communication: | HART | Product Name: | Digital Pressure Transmitter |
| Power Supply: | 24VDC | Process Connection: | 1/2-14NPT |
| Skype: | Summer.cao39 |

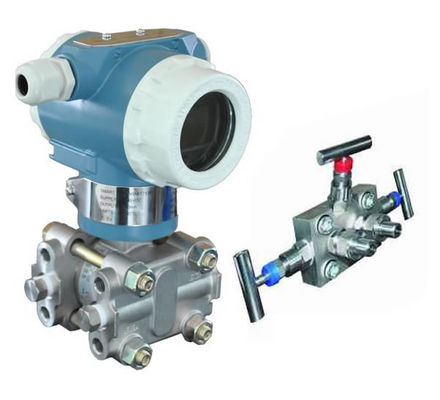

gas vapor steam water differential pressure transmitter/transducer/sensor 4-20ma
Technical Parameter:
1.Process fluid: liquid,gas,vapor
2.Display:4 digits programmable&0-100%bargraph
3.Application:differential pressure,gauge pressure, absolute pressure
4.Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum)
5.Current output:4-20mA 2 wires Hart Protocol
6.Power supply:9-36VDC
7.Max pressure:40MPa
8.Mounting:bracket on 2” pipe
9.Electrical connections:1/4”NPT (M20 Conduit threads)
10.Process connections:1/4-18NPT, 1/2-14NPT(with adapter)
11.Dimension:102mm(W)*188mm(H)*130mm(D) Weight:5kg
Order sheet:
gas vapor steam water differential pressure transmitter/transducer/sensor 4-20ma
| Model | Spec Code | Directions | ||
| AT3051DP | ……………… | Smart Pressure Transmit ter | ||
|
Measuring range
|
3…………… | 1.3~7.5 kPa | ||
| 4…………… | 6.2~37.4 kPa | |||
| 5…………… | 31~186.8 kPa | |||
| 6…………… | 117~690 kPa | |||
| 7…………… | 345~2068 kPa | |||
| 8…………… | 1170~6890 kPa | |||
| Output signal | E…………… | 4~20mA | ||
| S…………… | 4~20mA, HART Protocol DigitalCommunication | |||
| L…………… | 4~20mA, Smart Field Adjustable | |||
| Wetted parts material | Flange/Joint | Exhaust/DrainValve | Diaphragm | |
| 22…………… |
316stainless steel |
316stainless steel |
316stainless steel | |
| 23…………… | hasteslloyC-276 | |||
| 24…………… | Monel | |||
| 25…………… | Tantalum | |||
| 56…………… | Hastelloy C | Hastelloy C-276 | Hastelloy C-276 | |
| Flange joint | J…………… | “D- shaped” Joint with “M20*1.5” External thread | ||
| N…………… | “ Kidney-shaped” Joint with 1/2-14NPT | |||
| C12…………… |
Cited Pressure Transition Joint with 1/2-14NPT, and Stainless Steel Cited Pressure Pipe Welding in the Rear |
|||
| Mounting bracket | B1…………… | Tube-type Curved Bracket (Tube ODΦ50~Φ60) | ||
| B2…………… | Board-type Curved Bracket | |||
| B3…………… | Tube-type Straight Bracket (Tube ODΦ50~Φ60) | |||
| Display header(optional) | M1…………… | Linear Instruction Header (0~100% scale) | ||
| M2…………… | Square Root Instruction Header (0~100% scale) | |||
| M3…………… | Four- digit LCD Header(0~100% linear display) | |||
| M4…………… | Four- digit LCD Header (can be specifically set ) | |||
| Process flange | D…………… | Exhaust or Drain in the Rear | ||
|
Special Specification |
d…………… | Explosion-proof License: d Ⅱ B T5 | ||
| i…………… | Intrinsically Safe Approval: ia Ⅱ C T6 | |||
| Typical Model |
AT3051DP4S22M3B1DJ
|
|||
gas vapor steam water differential pressure transmitter/transducer/sensor 4-20ma
Our company
Q: Are you trading company or manufacturer ?
A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince, China.
A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer. But if you need goods urgently, we can arrange expedited production.
A: Yes, we could provide the sample. But, you need to pay for the cost.
A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.
A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
