| Output Signal: | 4-20mA+HART | Accuracy: | 0.1% |
|---|---|---|---|
| Communication: | HART | Product Name: | Digital Pressure Transmitter |
| Power Supply: | 24VDC | Process Connection: | 1/2-14NPT |
| Skype: | Summer.cao39 |

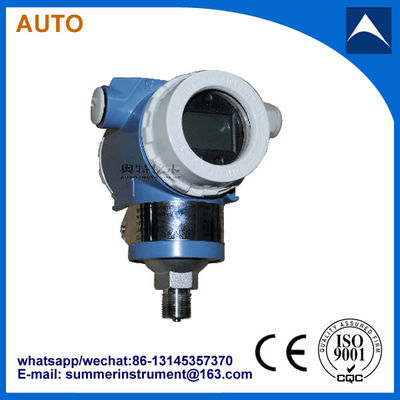

direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
Products show and detais
Technical Parameter:direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
| Process fluid: liquid,gas,vapor |
| Display:4 digits programmable&0-100%bargraph |
| Application:differential pressure,gauge pressure, absolute pressure |
| Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum) |
| Turn down ration:1:100 |
| Accuracy:±0.1% of span |
| Stability:±0.15% of URL 2 years |
| Working temperature:-25 to 950C |
| Display unit:standard 22 engineer unit,4 digits programmable for special unit |
| Keyboard:3 keys from internal for programming and outout setting |
| Current output:4-20mA 2 wires Hart Protocol ,Rohm=(Vdc-9)*50 |
| Power supply:9-36VDC |
| Damping adjustment:0-32 second |
| Max pressure:40MPa |
| Respond time:200ms |
| Humidity limits:0 to 100% relative humidity |
| Turn on time:2 seconds with minmum damping |
| Zero calibration:automatic zero calibration by press button |
| Electrical connections:1/2”NPT (M20 Conduit threads) |
| Temperature effect:±0.18% of span per 200C |
| Vibration effect:±0.05% of URL per g to 200 Hz in any axis |
| EMI/RFI effect:follow SAMA PMC 33.1 from 20 to 1000MHz and for field strengths up to 30V/m |
| Process connections:1/4-18NPT, 1/2-14NPT(with adapter) |
| Ambient temperature:-25 to 800C |
| Dimension:102mm(W)*188mm(H)*130mm(D) |
| Weight:5.5kg |
direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
Material:direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
| Flange /Adapters:stainless steel 304/316 |
| Drains/Vents:stainless steel 304/316 |
| Diaphragms:stainless steel 316L/Hastelloy B/Hastelloy C/Monel/Tantalum |
| Wetted O-Rings: Buna N/Viton/PTFE |
| Bolts&nuts:carbon steel/stainless steel 316 |
| Mounting Bracket:carbon steel/stainless steel 304/316 |
| Name/Tag plate:stainless steel 304/316 |
| Converter housing:low copper cast aluminum alloy with polyurethane, light blue paint |
| Fill fluid:silicone/fluorine oil |
| Enclosure:IP65 |
| Intrinsically safe:ia II C T6 |
| Explosion proof: d II B T5 |
direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
Our company
Order sheet direct mount 1/2"NPT or 1/4"NPT thread connection flush pressure transmitter with low price
| Name | Specification code | Explanation |
| AT3051GP | Direct installed pressure transmitter | |
| 4 | (0.062-0.374)bar | |
| 5 | (0.31-1.868)bar | |
| 6 | (1.17-6.9)bar | |
| 7 | (3.45-20.68)bar | |
| 8 | (11.7-68.90)bar | |
| Output Signal | F | analog type 4-20mA |
| H | 4-20mA, HART Protocol Digital Communication | |
|
Display Header (optional) |
M1 | Without LCD display |
| M2 | With LCD display | |
| Process connection | M | M20*1.5 |
| G | G1/2” | |
| N | 1/2”NPT | |
|
Electrical interface
|
1 | M20*1.5 |
| 2 | 1/2”NPT |
