China high quality low cost smart differential pressure transmitter

China China high quality low cost smart differential pressure transmitter supplier
China high quality low cost smart differential pressure transmitter supplier China high quality low cost smart differential pressure transmitter supplier China high quality low cost smart differential pressure transmitter supplier China high quality low cost smart differential pressure transmitter supplier

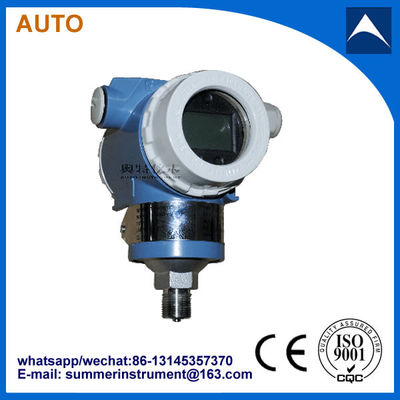

Large Image :  China high quality low cost smart differential pressure transmitter

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE.ISO9001
Model Number: 3051DP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: USD200/PC
Packaging Details: carton or as your required
Delivery Time: 5-6days after receive the payment
Payment Terms: L/C, D/P, T/T, Western Union,Paypal
Detailed Product Description
Output Signal: 4-20mA+HART Accuracy: 0.1%
Communication: HART Product Name: Digital Pressure Transmitter
Power Supply: 24VDC Process Connection: 1/2-14NPT
Skype: Summer.cao39

China high quality low cost smart differential pressure transmitter



pressure transmitter.jpg




Introduction:

Smart differential pressure transmitter is instrument researched and developed by our company

along with some internal companies under international advanced technology.

The meter has temperature and non linearity compensation under micro processing technology,

improved meter measurement accuracy and temperature feature,expnded range ration,added the function of

intelligent configuration,further meet the reliable and stable requirement for industrial field.Keycomponent and

parts areimported and strict test is done before delivery.The meter has advanced design principle,reliable

product quality, variety,Simple installation and usage etc features.



Technical Parameter:

1.Process fluid: liquid,gas,vapor

2.Display:4 digits programmable&0-100%bargraph

3.Application:differential pressure,gauge pressure, absolute pressure

4.Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum)

5.Current output:4-20mA 2 wires Hart Protocol

6.Power supply:9-36VDC

7.Max pressure:40MPa

8.Mounting:bracket on 2 pipe

9.Electrical connections:1/4NPT (M20 Conduit threads)

10.Process connections:1/4-18NPT, 1/2-14NPT(with adapter)

11.Dimension:102mm(W)*188mm(H)*130mm(D) Weight:5kg



paste-pic-dp_uuid_916gv

Order sheet:

Model Spec Code Directions
AT3051DP ……………… pressure differential transmitter

Measuring range



3…………… 1.3~7.5 kPa
4…………… 6.2~37.4 kPa
5…………… 31~186.8 kPa
6…………… 117~690 kPa
7…………… 345~2068 kPa
8…………… 1170~6890 kPa
Output signal E…………… 4~20mA
S…………… 4~20mA, HART Protocol DigitalCommunication
L…………… 4~20mA, Smart Field Adjustable
Wetted parts material   Flange/Joint Exhaust/DrainValve Diaphragm
22……………



316stainless steel





316stainless steel

316stainless steel
23…………… hasteslloyC-276
24…………… Monel
25…………… Tantalum
56…………… Hastelloy C Hastelloy C-276 Hastelloy C-276
Flange joint J…………… “D- shaped” Joint with “M20*1.5” External thread
N…………… “ Kidney-shaped” Joint with 1/2-14NPT
C12……………

Cited Pressure Transition Joint with 1/2-14NPT, and Stainless Steel Cited

Pressure Pipe Welding in the Rear

Mounting bracket B1…………… Tube-type Curved Bracket (Tube ODΦ50~Φ60)
B2…………… Board-type Curved Bracket
B3…………… Tube-type Straight Bracket (Tube ODΦ50~Φ60)
Display header(optional) M1…………… Linear Instruction Header (0~100% scale)
M2…………… Square Root Instruction Header (0~100% scale)
M3…………… Four- digit LCD Header(0~100% linear display)
M4…………… Four- digit LCD Header (can be specifically set )
Process flange D…………… Exhaust or Drain in the Rear

Special

Specification

d…………… Explosion-proof License: d Ⅱ B T5
i…………… Intrinsically Safe Approval: ia Ⅱ C T6
Typical Model

AT3051DP4S22M3B1DJ



3051DP GP AP 0.075 hart differential pressure transmitter/pressure transmitter 4-20ma in stock

Our company



pressure transmitter71.jpgpressure transmitter69.JPG







working room&testing room.jpg

FAQ



Q: Are you trading company or manufacturer ?

A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince,

China.

Q: How long is your delivery time?

A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working

days or longer. But if you need goods urgently, we can arrange expedited production.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could provide the sample. But, you need to pay for the cost.

Q: What certificates do you have?

A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.

Q: What are your main products?

A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
