Output Signal: | 4-20mA+HART | Accuracy: | 0.1% |
---|---|---|---|
Communication: | HART | Product Name: | Digital Pressure Transmitter |
Power Supply: | 24VDC | Process Connection: | 1/2-14NPT |
Skype: | Summer.cao39 |

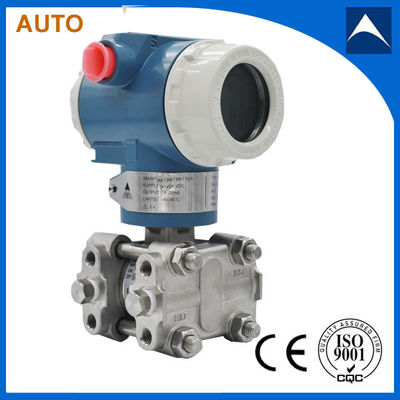

High Precision Differential Pressure Transmitter with 4-20 mA
Smart Differential Pressure Transmitter is microprocessor-based measuring instrument. With advanced microprocessor technology-enabled temperature and nonlinear compensation, Smart Differential Pressure Transmitter features higher measurement accuracy, better temperature characteristic, and stability and reliability. DP, which is compatible with HART 475 field communicator, is used to measure the level, density, and pressure of liquid, gas, and steam, convert it to 4-20mAdc current signal outputs.
Specification | |
---|---|
Operating Type | SMART, 2 wire |
Range | 0~2.1-21Mpa |
Display | LCD with Engineering Units |
Zero Span Adjust | YES |
Over Range Protection | 2 Times Max. Pressure |
Square root Extraction | YES |
Accuracy | ±0.1% |
Stability | ± 0.125% of URL |
Ingress Protection | IP65/IP67 |
Power Supply | 24 VDC (Loop Powered) |
Output Signal | 4-20Ma, HART |
Elec. Connection | 2 Nos. 1/2" NPT(F) |
Material of Element | SS316 |
Material of Body | SS316 |
Material of Housing | Die cast Alu. Epoxy Coating |
Material of Wetted Part | SS316 |
Application
Order sheet:
Model | Spec Code | Directions | ||
AT3051DP | ……………… | pressure differential transmitter | ||
Measuring range
|
3…………… | 1.3~7.5 kPa | ||
4…………… | 6.2~37.4 kPa | |||
5…………… | 31~186.8 kPa | |||
6…………… | 117~690 kPa | |||
7…………… | 345~2068 kPa | |||
8…………… | 1170~6890 kPa | |||
Output signal | E…………… | 4~20mA | ||
S…………… | 4~20mA, HART Protocol DigitalCommunication | |||
L…………… | 4~20mA, Smart Field Adjustable | |||
Wetted parts material | Flange/Joint | Exhaust/DrainValve | Diaphragm | |
22…………… |
316stainless steel |
316stainless steel |
316stainless steel | |
23…………… | hasteslloyC-276 | |||
24…………… | Monel | |||
25…………… | Tantalum | |||
56…………… | Hastelloy C | Hastelloy C-276 | Hastelloy C-276 | |
Flange joint | J…………… | “D- shaped” Joint with “M20*1.5” External thread | ||
N…………… | “ Kidney-shaped” Joint with 1/2-14NPT | |||
C12…………… |
Cited Pressure Transition Joint with 1/2-14NPT, and Stainless Steel Cited Pressure Pipe Welding in the Rear |
|||
Mounting bracket | B1…………… | Tube-type Curved Bracket (Tube ODΦ50~Φ60) | ||
B2…………… | Board-type Curved Bracket | |||
B3…………… | Tube-type Straight Bracket (Tube ODΦ50~Φ60) | |||
Display header(optional) | M1…………… | Linear Instruction Header (0~100% scale) | ||
M2…………… | Square Root Instruction Header (0~100% scale) | |||
M3…………… | Four- digit LCD Header(0~100% linear display) | |||
M4…………… | Four- digit LCD Header (can be specifically set ) | |||
Process flange | D…………… | Exhaust or Drain in the Rear | ||
Special Specification |
d…………… | Explosion-proof License: d Ⅱ B T5 | ||
i…………… | Intrinsically Safe Approval: ia Ⅱ C T6 | |||
Typical Model |
AT3051DP4S22M3B1DJ
|
Our company
Q: Are you trading company or manufacturer ?
A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince,
China.
A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working
days or longer. But if you need goods urgently, we can arrange expedited production.
A: Yes, we could provide the sample. But, you need to pay for the cost.
A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.
A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
Application
