3051 smart 4-20ma differential pressure transmitter price with high quality

China 3051 smart 4-20ma differential pressure transmitter price with high quality supplier
3051 smart 4-20ma differential pressure transmitter price with high quality supplier 3051 smart 4-20ma differential pressure transmitter price with high quality supplier 3051 smart 4-20ma differential pressure transmitter price with high quality supplier 3051 smart 4-20ma differential pressure transmitter price with high quality supplier 3051 smart 4-20ma differential pressure transmitter price with high quality supplier

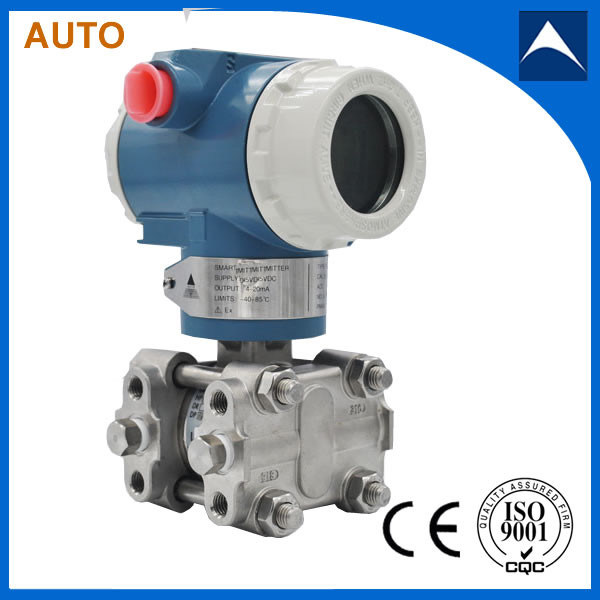

Large Image :  3051 smart 4-20ma differential pressure transmitter price with high quality

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE.ISO9001
Model Number: 3051DP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: USD200/PC
Packaging Details: carton or as your required
Delivery Time: 5-6days after receive the payment
Payment Terms: L/C, D/P, T/T, Western Union,Paypal
Detailed Product Description
Output Signal: 4-20mA+HART Accuracy: 0.1%
Communication: HART Product Name: Digital Pressure Transmitter
Power Supply: 24VDC Process Connection: 1/2-14NPT
Skype: Summer.cao39

3051 smart 4-20ma differential pressure transmitter price with high quality



3051 smart 4-20ma differential pressure transmitter price with high quality




Smart Pressure Transmitters (Differential Pressure)

Smart Differential Pressure Transmitter is microprocessor-based measuring instrument. With advanced microprocessor technology-enabled temperature and nonlinear compensation, Smart Differential Pressure Transmitter features higher measurement accuracy, better temperature characteristic, and stability and reliability.  DP, which is compatible with HART 475 field communicator, is used to measure the level, density, and pressure of liquid, gas, and steam, convert it to 4-20mAdc current signal outputs.



Features

  • High level stability and precision
  • Excellet overload capacity
  • Enhanced self-diagnostic capacity
  • Independent Zero & Span Adjustment
  • Rugged construction for shock resistance
  • Digital compensation technology compensating for temperature and static pressure
  • No mechanical transmission parts, less maintenance to minimize downtime
  • Perfect local and remote set-up and calibration function
Specification
Operating Type SMART, 2 wire
Range 0~2.1-21Mpa
Display LCD with Engineering Units
Zero Span Adjust YES
Over Range Protection 2 Times Max. Pressure
Square root Extraction YES
Accuracy ±0.1%
Stability ± 0.125% of URL
Ingress Protection IP65/IP67
Power Supply 24 VDC (Loop Powered)
Output Signal 4-20Ma, HART
Elec. Connection 2 Nos. 1/2" NPT(F)
Material of Element SS316
Material of Body SS316
Material of Housing Die cast Alu. Epoxy Coating
Material of Wetted Part SS316




Applicationpaste-pic-dp_uuid_916gv

  • Electricity
  • Water Conservancy
  • Metallurgy
  • Environmental Protection
  • Petrifaction
  • Pharmacy
  • Paper-making
  • Furnace
  •

Order sheet:



Model Spec Code Directions
AT3051DP ……………… pressure differential transmitter

Measuring range



3…………… 1.3~7.5 kPa
4…………… 6.2~37.4 kPa
5…………… 31~186.8 kPa
6…………… 117~690 kPa
7…………… 345~2068 kPa
8…………… 1170~6890 kPa
Output signal E…………… 4~20mA
S…………… 4~20mA, HART Protocol DigitalCommunication
L…………… 4~20mA, Smart Field Adjustable
Wetted parts material   Flange/Joint Exhaust/DrainValve Diaphragm
22……………



316stainless steel





316stainless steel

316stainless steel
23…………… hasteslloyC-276
24…………… Monel
25…………… Tantalum
56…………… Hastelloy C Hastelloy C-276 Hastelloy C-276
Flange joint J…………… “D- shaped” Joint with “M20*1.5” External thread
N…………… “ Kidney-shaped” Joint with 1/2-14NPT
C12……………

Cited Pressure Transition Joint with 1/2-14NPT, and Stainless Steel Cited

Pressure Pipe Welding in the Rear

Mounting bracket B1…………… Tube-type Curved Bracket (Tube ODΦ50~Φ60)
B2…………… Board-type Curved Bracket
B3…………… Tube-type Straight Bracket (Tube ODΦ50~Φ60)
Display header(optional) M1…………… Linear Instruction Header (0~100% scale)
M2…………… Square Root Instruction Header (0~100% scale)
M3…………… Four- digit LCD Header(0~100% linear display)
M4…………… Four- digit LCD Header (can be specifically set )
Process flange D…………… Exhaust or Drain in the Rear

Special

Specification

d…………… Explosion-proof License: d Ⅱ B T5
i…………… Intrinsically Safe Approval: ia Ⅱ C T6
Typical Model

AT3051DP4S22M3B1DJ



Our company



pressure transmitter71.jpgpressure transmitter69.JPG







working room&testing room.jpg

FAQ



Q: Are you trading company or manufacturer ?

A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince,

China.

Q: How long is your delivery time?

A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working

days or longer. But if you need goods urgently, we can arrange expedited production.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could provide the sample. But, you need to pay for the cost.

Q: What certificates do you have?

A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.

Q: What are your main products?

A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
