| Power Supply: | 24VDC | Accuracy: | 0.1% |
|---|---|---|---|
| Output Signal:: | 4-20mA | Protocol: | HART |
| Process Connection: | 1/2-14NPT(M) | Electrical Connection: | 1/2NPT Female |
| Display: | LCD Indicator | Name: | Differential Pressure Transmitter |

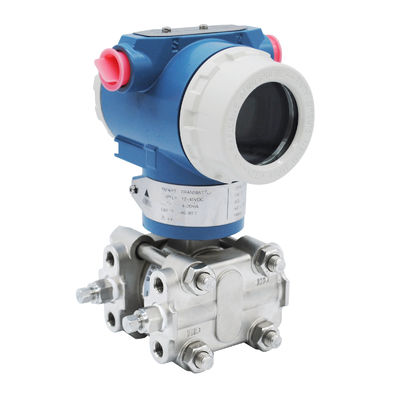

4-20MA HART anti-expolosion differential pressure level transmitter
Products show and detais
Technical Parameter:
| Process fluid: liquid,gas,vapor |
| Display:4 digits programmable&0-100%bargraph |
| Application:differential pressure,gauge pressure, absolute pressure |
| Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum) |
| Turn down ration:1:100 |
| Accuracy:±0.075% of span |
| Stability:±0.15% of URL 2 years |
| Working temperature:-25 to 950C |
| Display unit:standard 22 engineer unit,4 digits programmable for special unit |
| Keyboard:3 keys from internal for programming and outout setting |
| Current output:4-20mA 2 wires Hart Protocol ,Rohm=(Vdc-9)*50 |
| Power supply:9-36VDC |
| Damping adjustment:0-32 second |
| Max pressure:40MPa |
| Respond time:200ms |
| Mounting:bracket on 2” pipe |
| Humidity limits:0 to 100% relative humidity |
| Turn on time:2 seconds with minmum damping |
| Zero calibration:automatic zero calibration by press button |
| Electrical connections:1/4”NPT (M20 Conduit threads) |
| Temperature effect:±0.18% of span per 200C |
| Vibration effect:±0.05% of URL per g to 200 Hz in any axis |
| EMI/RFI effect:follow SAMA PMC 33.1 from 20 to 1000MHz and for field strengths up to 30V/m |
| Process connections:1/4-18NPT, 1/2-14NPT(with adapter) |
| Ambient temperature:-25 to 800C |
| Dimension:102mm(W)*188mm(H)*130mm(D) |
| Weight:5.5kg |
smart pressure transmitter new pressure measuring instrument
Material:
| Flange /Adapters:stainless steel 304/316 |
| Drains/Vents:stainless steel 304/316 |
| Diaphragms:stainless steel 316L/Hastelloy B/Hastelloy C/Monel/Tantalum |
| Wetted O-Rings: Buna N/Viton/PTFE |
| Bolts&nuts:carbon steel/stainless steel 316 |
| Mounting Bracket:carbon steel/stainless steel 304/316 |
| Name/Tag plate:stainless steel 304/316 |
| Converter housing:low copper cast aluminum alloy with polyurethane, light blue paint |
| Fill fluid:silicone/fluorine oil |
| Enclosure:IP65 |
| Intrinsically safe:ia II C T6 |
| Explosion proof: d II B T5 |
smart pressure transmitter new pressure measuring instrument
Our company
Order sheet
| Name | Specification code | Explanation | ||
| 3051DP |
Differential Pressure Transmitter
|
|||
| 3 | 1.3-7.5KPa | |||
| 4 | 6.2-37.4KPa | |||
| 5 | 31-186.8KPa | |||
| 6 | 117-690KPa | |||
| 7 | 345-2068KPa | |||
| 8 | 1170-6890KPa | |||
| 9 | 3480-20680KPa | |||
| 0 | 6890-41370KPa | |||
| Output Signal | E | analog type 4-20mA | ||
| S | 4-20mA, HART Protocol Digital Communication | |||
|
Wetted Parts Material |
Flange/Joint | Exhaust/Drain Valve | Diaphragm | |
| 22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel | |
| 23 | Hastelloy C-276 | |||
| 24 | Tantalum | |||
|
Mounting Bracket |
B1 | Tube-type Curved Bracket (Tube ODΦ50~Φ60) | ||
| B2 | Board- type Curved Bracket | |||
| B3 | Tube-type Straight Bracket (Tube ODΦ50~Φ60) | |||
|
Display Header (optional) |
M2 | Linear Pointer Header (0~100% scale) | ||
| M3 | Square Root Instruction Header(0~100% scale) | |||
| M4 | LCD Header(0~100% linear display) | |||
|
Process Flange |
D | The liquid discharge / exhaust at the back | ||
| D1 | The liquid discharge / exhaust at the side top | |||
| D2 | The liquid discharge / exhaust at the side bottom | |||
| Flange Joint | J | “D-shaped” Joint with “ M20*1.5” External thread | ||
| N | Joint with 1/2-14NPT taper pipe thread waist type | |||
