|Structure Material:||Steel/Common Material||Probe Diameter:||14mm/25mm|
|Application:||Sound Level Meter||Product Name:||Well Depth Meter, Water Level Meter|
0-30M digital water level indicator used for measuring wells pipes
Well depth measurement for Pipes Wells /Boreholes
SIZE: 30M, 50M, 100M, 150M, 200M, 250M, 300M, 400M, 500M
Uses and characteristics
Our Cable Water Level Gauge provided the most accurate method of measuring the water level,
typically used for measuring wells, drilling and pipe’s water level. The instrument can be used in during
construction, can also be used as a long-term safety monitoring of the project.

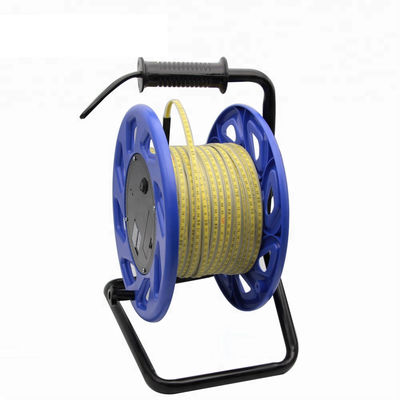

The instrument consists of a sensor probe, a host, and a reel.
♥easy to use:
1,Slowly slide the sensor probe head down into the water.
2,When the probe head touches the water, an induced potential is generated.
3,After circuit processing, sound and light instructions are issued.
4,Then read out the height difference data between the surface and the ground from the ruler.
1. Quick response circuit design, high detect speed, high sensitivity
2. Adapt to various environmental and regional water quality
3. Low power consumption, battery-powered use two years at once
4. The cable has a ruler scale to measure the water level directly
|Depth of the
♦water conservancy project,
♦hydrology, geography, environmental protection
♦other areas of industry and agriculture fields
♦other liquid level measurement
The water level meter is made of the probe, steel ruler and reel .
♦Put the probe to the water slowly, when the probe touch the surface of water,the electric potentialwill be happened.
♦After dealing by circuit board.The sound or light will be indicated,then you could check the height between thesurface of the water to the ground, easilyoperating
|Shell color||blue, yellow, black|
|battery power||9V lithium battery|
|Instrument for temperature||-20℃~+60℃|
|The response time for output||≤1ms|
|Adaptation range of water quality||10μω~1000μω|
|Measurement signal||LED, buzzer|
|construction of cable||
conductor: Multi-strand tinning copper wires twisted
core wire:Special PP mixed insulation
ecderon:Special PUR or PE mixed
ecderon color :natural color
