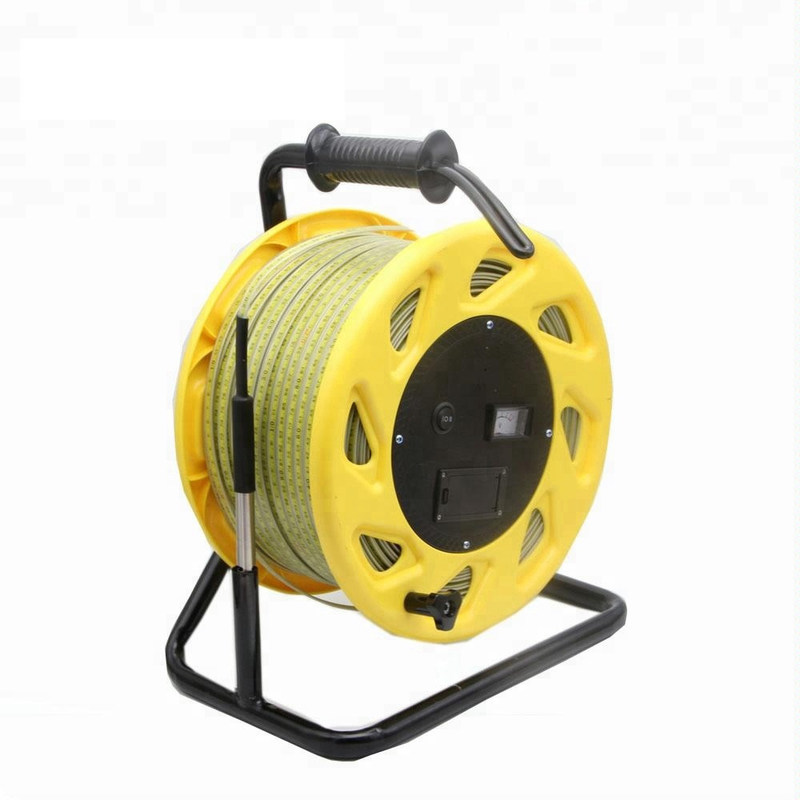

Low Price pozometro 50M 100M 150M pozometer well borehole water level meter

China Low Price pozometro 50M 100M 150M pozometer well borehole water level meter supplier
Low Price pozometro 50M 100M 150M pozometer well borehole water level meter supplier Low Price pozometro 50M 100M 150M pozometer well borehole water level meter supplier Low Price pozometro 50M 100M 150M pozometer well borehole water level meter supplier

Large Image :  Low Price pozometro 50M 100M 150M pozometer well borehole water level meter

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001
Model Number: ATWLM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: USD200
Packaging Details: carton or as your required
Delivery Time: 3-4days
Payment Terms: T/T, Western Union
Detailed Product Description
Range: 0-500M(optional) Minimum Indication: 1mm
Structure Material: Steel/Common Material Probe Diameter: 14mm/25mm
Application: Sound Level Meter Product Name: Well Depth Meter, Water Level Meter
Name: Ruler Tape Ground Water Level Indicator 50M 100M 150M Well Depth Water Level Meter

Introduction of water level meter

          Low Price pozometro 50M 100M 150M pozometer well borehole water level meter



Well depth measurement for Pipes Wells /Boreholes



SIZE: 30M, 50M, 100M, 150M, 200M, 250M, 300M, 400M, 500M

Low Price pozometro 50M 100M 150M pozometer well borehole water level meter

Uses and characteristics

Our Cable Water Level Gauge provided the most accurate method of measuring the water level,

typically used for measuring wells, drilling and pipe’s water level. The instrument can be used in during

construction, can also be used as a long-term safety monitoring of the project.

♥composition:

The instrument consists of a sensor probe, a host, and a reel.


♥easy to use:

1,Slowly slide the sensor probe head down into the water.

2,When the probe head touches the water, an induced potential is generated.

3,After circuit processing, sound and light instructions are issued.
4,Then read out the height difference data between the surface and the ground from the ruler.



Features

1. Quick response circuit design, high detect speed, high sensitivity

2. Adapt to various environmental and regional water quality

3. Low power consumption, battery-powered use two years at once

4. The cable has a ruler scale to measure the water level directly



Specification WLM-30 WLM-50 WLM-100 WLM-150 WLM-200 WLM-250 WLM-300 WLM-400 WLM-500
Depth of the
measurement(m)
30m 50m 100m 150m 200m 250m 300m 400m 500m
Minimum indication
(mm)
1.0
Repeat indication
(mm)
±2.0
weight(Kg) 4 4.5 6.5 7.5 9 10.5 12 16 18
Power supply(V) 9v

Low Price pozometro 50M 100M 150M pozometer well borehole water level meter

application:

water conservancy project,

hydrology, geography, environmental protection

other areas of industry and agriculture fields

♦other liquid level measurement

How to use ?

The water level meter is made of the probe, steel ruler and reel .

♦Put the probe to the water slowly, when the probe touch the surface of water,the electric potentialwill be happened.

♦After dealing by circuit board.The sound or light will be indicated,then you could check the height between thesurface of the water to the ground, easilyoperating

Low Price pozometro 50M 100M 150M pozometer well borehole water level meter





Specification



shell material ABS,Metal
Shell color blue, yellow, black
Measurement range 30m,50m,100m,200m,300m,400m,500m
battery power 9V lithium battery
Instrument for temperature -20℃~+60℃
The response time for output ≤1ms
Measurement error ≤±0.5mm
Adaptation range of water quality 10μω~1000μω
Measurement signal LED, buzzer
construction of cable

conductor: Multi-strand tinning copper wires twisted

core wire:Special PP mixed insulation

ecderon:Special PUR or PE mixed

ecderon color :natural color

rated voltage 300V
Testing Voltage 2000V
insulation resistance >200MΩ×km







Application

Low Price pozometro 50M 100M 150M pozometer well borehole water level meter



Low Price pozometro 50M 100M 150M pozometer well borehole water level meter
