Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001
Model Number: UHZ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: US$100/PC
Packaging Details: carton or wooden ,or can as your required
Delivery Time: 3-5days after confirm orer
Payment Terms: T/T, Western Union
Detailed Product Description
Material: 316,PTFE Temperature: Below 350C
Connect: Flange ,thread

UHZ Magnetic Level Indicator/ Magnetic Float Liquid Level Gauge/Level Indicator/Level Meter For Oil



UHZ Magnetic Float Type Level Gauge

Product Description



flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge

Main Features
Turned column shell is made of ABS, nylon, high temperature ceramic different
material, do not fade, high temperature
measure liquid level, interface level
wide measuring range, unrestricted by tank height others
indicating mechanism is completely isolated with the measured medium, and good
sealing, high reliability, security
simple structure, easy installation, low maintenance costs
corrosion-resistant, explosion-proof, intuitive readings



Technical parameters

measuring range: 300 ~ 13000mm
accuracy: ± 10 mm
Working pressure: 1.0,2.5,4.0,6.4,10,16Mp
Medium temperature: -20 ~ + 250 ℃ (special requirements of up to 450 ℃)
medium viscosity: ≤0.5Pa.S, the viscosity of the medium or low temperature, easy to
crystallize the media, according to user requirements jacketed type level gauge
medium density ≥0.45g / cm 3
medium density difference ≥0.15g / cm 3 (measuring interface level)
normal working conditions:

Temperature: -20 ~ 80 ℃

Relative Humidity: 10% to 90%
Power supply: DC24V or AC220V
Environmental pressure: 86KPa ~ 106KPa
Environmental vibration: Frequency ≤25HZ, amplitude ≤0.05mm
Load Resistance: 0 ~ 750Ω
Wetted materials: stainless steel 304, 316L stainless steel, PVC, PTFE, titanium, etc.
Process connection: flange connection. Side-mounted: the factory default DN20,304
stainless steel flanges; top-mounted: The factory default DN100, carbon steel flanges, flange
standards adopted HG20592 ~ 20635-97 standard Ministry of Chemical Industry in 1998
issued the latest, other flange standards (such as GB, JB / T, HGJ, ANSI, DIN and other

standards) should be specified when ordering.

flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge

Order Sheet

Model selection

UHZ Magnetic Level Indicator/ Magnetic Float Liquid Level Gauge/Level Indicator/Level Meter For oil

UHZ Magnetic Level Indicator/ Magnetic Float Liquid Level Gauge/Level Indicator/Level Meter For oil

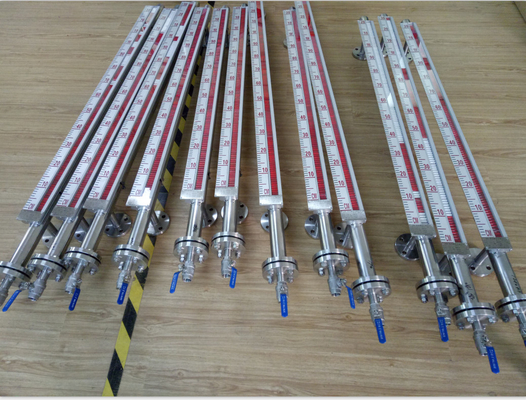

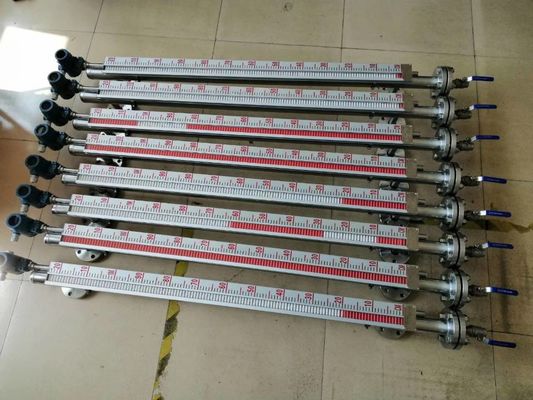

Detailed Images



flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge

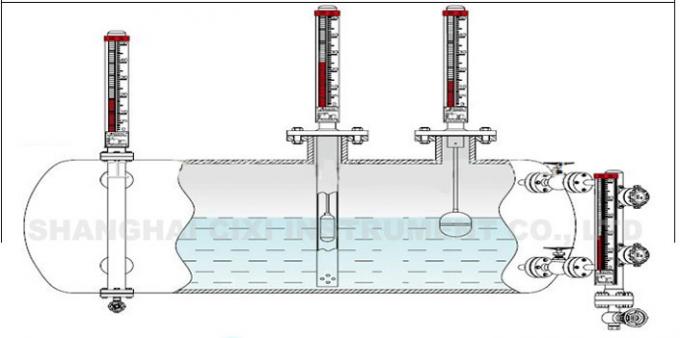

Installationflange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge

flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge



flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge



flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge

Company Information

Our company

UHZ Magnetic Level Indicator/ Magnetic Float Liquid Level Gauge/Level Indicator/Level Meter For oil



Q: Are you trading company or manufacturer ?

A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince, China.

Q: How long is your delivery time?

A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer. But if you need goods urgently, we can arrange expedited production.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could provide the sample. But, you need to pay for the cost.

Q: What certificates do you have?

A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.

Certifications

CERTIFICATES

flange side mounted Magnetic float level gauge mechanical float type level gauge water oil tanks level gauge
