Supply Voltage: | 5V | Output: | Capacitive Signal |
---|---|---|---|
Range: | 0.2kPa~20MPa | Stability: | 0.2%/Year |
Temperature Range: | -40 To 104°c | Skype: | Summer.cao39 |
High Light: | Low cost differential pressure sensor with capacitive signal,differential pressure sensor with capacitive signal,differential pressure sensor |

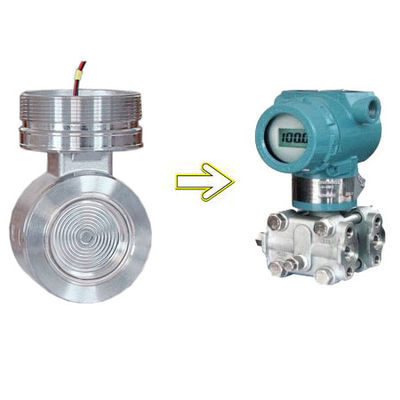

Low cost differential pressure sensor with capacitive signal made in China
Metal Capacitive Sensor
Differential Pressure Sensor
Pressure Sensor
Technical data:
· Supply voltage: 5V
· Output: Capacitive signal
Accuracy :Nominal range 0.1%
Zero: 130pF ±20PF
Range: 250pF ±20PF
Range: 0.2kPa~20MPa
stability:0.2%/Year
Process temperature range:-40 to 104°c
Item |
Technical Parameters |
||
Accuracy |
of the tuning range |
±0.1% |
|
Stability |
of the maximum range |
±0.2%(one year) |
|
Temperature Range |
-40°C — +104°C |
||
Temperature Affect |
zero error |
±0.25%/55°C of the range |
|
range error |
±0.5%/55°C of the range |
||
Static Pressure Range |
DR 6.9MPa |
DP 13.8MPa |
HP 25MPa |
Overpressure Limit |
AP GP 13.8MPa |
DR DP HP with the static pressure range |
|
Diaphragm Material |
316L stainless steel |
Hastelloy C |
Tantalum
|
Application:
Pressure Transmitter
Differential Pressure Transmitter
Liquid Level Transmitter
Flow Transmitter
Density Transmitter
Sensor:
