Output Signal: | 4-20mA/HART | Power Supply: | 24V DC |
---|---|---|---|
Operating Temperature: | -40 To +140C | Skype: | Summer.cao39 |
Name: | Differential Pressure Transmitter |

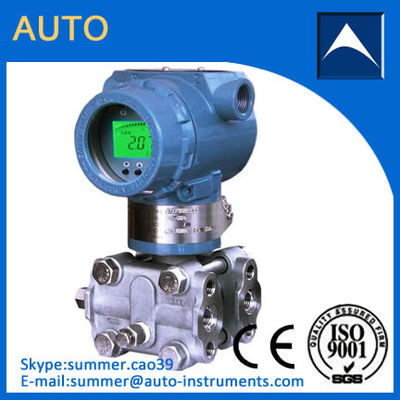

AT3051 HP Capacitive High Static Differential Pressure Transmitter Made In China
Function Parameters:
1. Applicable Object: Liquid, gas, steam
2. Measuring range: 0~0.1KPa to 0~40MPa
3. Output Signal: 4~20mA DC
4. Power Source: 12~45V DC, 24V DC on average
5. Load Characteristic: Depend on power resource. The relation of RL and VS is: RL≤50 (VS-12)
6. Indicating Gauge: Multiple parameters and multiple ways LCD indicate header
7. EX-proof: a. Exd Type ExdllCT6 b. intrinsic safety Type ExidllCT4
8. Range and Zero Point: Outer continually adjustable
9. Positive And Negative Shift: When zero passes positive or negative shift, upper limit and lower limit of
measuring range cannot exceed 100% of upper limit. The maximum positive shift is 500% that of minimum
adjustment range; the maximum negative shift range is 600% that of minimum adjustment range.
10. Temp Range: Working temperature range of amplifier: -29~+93 °c (LT type: -25~+70°c)
11. Filling silicone oil measuring element: -40~+104°C
12. Filling High Temperature Oil to Flange Transmitter : +15~+315°C
13. Common Silicone Oil: -40~+149°C
14. Static Pressure: 4, 10, 25, 32MPa
15. Humidity: relative humidity 0~100%
16. Volume Absorb Quantity: <0.16cm3
Differential Pressure Transmitter MainTechnical Parameters:
Accuracy: |
±0.1%, ±0.075% |
Dead zone: |
No (≤0.1%) |
Stability: |
Less than the absolute value of basic error of maximum range within 6 months. |
Vibration Effect: |
With 200HZ vibration frequency and error that of ±0.05%/g upper limit of measuring range in arbitrary axis |
Power Source Effect: |
<0.005%/V output range |
Load Effect: |
No load effect under stable power source |
Ording information sheet
Type |
Directions |
|
|||||||||||
AT1151DP |
Differential Pressure Transmitter |
|
|||||||||||
Measuring Span |
4 |
|
|
|
|
0~6.2~37.4kPa |
|
||||||
5 |
|
|
|
|
0~31~186.8kPa |
||||||||
6 |
|
|
|
|
0~117~690kPa |
|
|||||||
7 |
|
|
|
|
0~345~2068kPa |
||||||||
8 |
|
|
|
|
0~1170~6890kPa |
||||||||
Output signal |
|
E |
|
|
|
4~20mA DC |
|
||||||
|
S |
|
|
|
4~20mA DC two-wire +HART protocol |
|
|||||||
Wetted Parts Material |
|
|
|
|
|
Flange/Joint |
Exhaust/DrainValve |
Diaphragm |
Filled liquid |
|
|||
|
|
22 |
|
|
316L SS |
316L SS |
316L SS |
Silicone oil |
|
||||
|
|
23 |
|
|
316L SS |
316L SS |
Hastelloy C |
Silicone oil |
|
||||
|
|
24 |
|
|
316L SS |
316L SS |
Monel |
Silicone oil |
|||||
|
|
25 |
|
|
316L SS |
316L SS |
Tantalum |
Silicone oil |
|||||
|
|
56 |
|
|
Hastelloy C |
Hastelloy C-276 |
Hastelloy C-276 |
Silicone oil |
|||||
Option |
|
|
|
M1 |
|
Linear Instruction Header (0~100% scale) |
|
||||||
|
|
|
M2 |
|
Squar e Root Instruction Header(0~100% scale) |
||||||||
|
|
|
M3 |
|
Four-digit LCD Header(0~100% linear display) |
|
|||||||
|
|
|
M4 |
|
Four-digit LCD Header (can be specifically set ) |
||||||||
|
|
|
B1 |
|
Tube-type Curved Bracket (Tube ODΦ50~Φ60) |
|
|||||||
|
|
|
B2 |
|
Board- type Curved Bracket |
||||||||
|
|
|
B3 |
|
Tube-type Straight Bracket (Tube ODΦ50~Φ60) |
||||||||
|
|
|
D1 |
|
Flange side vent/drain valve at the top |
|
|||||||
|
|
|
D2 |
|
The flange side vent/drain valve at the bottom |
||||||||
|
|
|
J |
|
D-shaped” Joint with “ M20*1.5” External thread |
|
|||||||
|
|
|
N |
|
“Kidney-shaped” Joint with 1/2-14NPT |
||||||||
|
|
|
C12 |
|
Cited Pressure Transition Joint with 1/2-14NPT, and Stainless Steel Cited Pressure Pipe Welding in the Rear |
|
|||||||
Explosion-proof requirements |
|
|
|
|
-- |
Standard (no explosion) |
|
||||||
|
|
|
|
D |
explosion-proof:Exd II BT 5 |
|
|||||||
|
|
|
|
i |
The Ann model:Exia II CT 6 |
