AT3051 4~20mA Differential Pressure Transmitter Made In China

China AT3051 4~20mA Differential Pressure Transmitter Made In China supplier

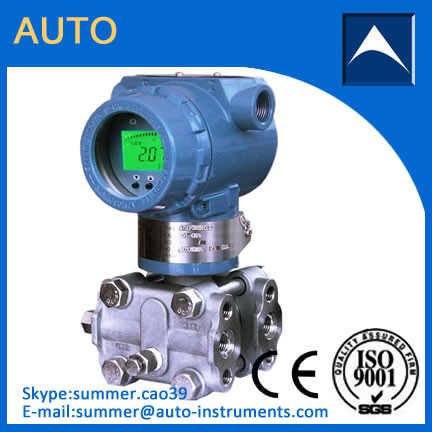

Large Image :  AT3051 4~20mA Differential Pressure Transmitter Made In China

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: ISO9001:2000,CE
Model Number: AT3051

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: $200/PC
Packaging Details: carton
Delivery Time: 3-5days after confirm order
Payment Terms: T/T,Paypal,L/C,
Supply Ability: 1500
Detailed Product Description
Output Signal: 4-20mA/HART Power Supply: 24V DC
Operating Temperature: -40 To +140C Skype: Summer.cao39
Name: Differential Pressure Transmitter

AT3051 4~20mA Differential Pressure Transmitter Made In China

 AT3051 4~20mA Differential Pressure Transmitter Made In China



Function Parameters:

1. Applicable Object: Liquid, gas, steam

2. Measuring range: 0~0.1KPa to 0~40MPa

3. Output Signal: 4~20mA DC

4. Power Source: 12~45V DC, 24V DC on average

5. Load Characteristic: Depend on power resource. The relation of RL and VS is: RL≤50 (VS-12)

6. Indicating Gauge: Multiple parameters and multiple ways LCD indicate header

7. EX-proof:   a. Exd Type ExdllCT6     b. intrinsic safety Type ExidllCT4

8. Range and Zero Point: Outer continually adjustable

9. Positive And Negative Shift: When zero passes positive or negative shift, upper limit and lower limit of

measuring range cannot exceed 100% of upper limit. The maximum positive shift is 500% that of minimum

adjustment range; the maximum negative shift range is 600% that of minimum adjustment range.

10. Temp Range: Working temperature range of amplifier: -29~+93 °c (LT type: -25~+70°c)

11. Filling silicone oil measuring element: -40~+104°C

12. Filling High Temperature Oil to Flange Transmitter : +15~+315°C

13. Common Silicone Oil: -40~+149°C

14. Static Pressure: 4, 10, 25, 32MPa

15. Humidity: relative humidity 0~100%

16. Volume Absorb Quantity: <0.16cm3

Hot sales LCD display HART protocol differential pressure transmitter  .jpg





Differential Pressure Transmitter MainTechnical Parameters:



Accuracy:

±0.1%, ±0.075%

Dead zone:

No (≤0.1%)

Stability:

Less than the absolute value of basic error of maximum range

 within 6 months.

Vibration Effect:

 With 200HZ vibration frequency and error that of ±0.05%/g upper

limit of measuring  range in arbitrary axis

Power Source Effect:

 <0.005%/V output range

Load Effect:

No load effect under stable power source



Capacitance LCD display 3051DP pressure transmitter made in China .jpg



                          Ording information sheet



Type

Directions



AT1151DP



Differential Pressure Transmitter



Measuring

Span

4









0~6.2~37.4kPa



5









0~31~186.8kPa

6









0~117~690kPa



7









0~345~2068kPa

8









0~1170~6890kPa

Output signal



E







4~20mA   DC





S







4~20mA  DC two-wire  +HART protocol



Wetted Parts

Material











Flange/Joint

Exhaust/DrainValve

Diaphragm

Filled liquid







22





316L SS

316L SS

316L SS

Silicone oil







23





316L SS

316L SS

 Hastelloy C

Silicone oil







24





316L SS

316L SS

Monel

Silicone oil





25





316L SS

316L SS

Tantalum

Silicone oil





56





 Hastelloy C

 Hastelloy C-276

Hastelloy C-276

Silicone oil

Option







M1



Linear Instruction Header  (0~100% scale)









M2



Squar e Root Instruction Header(0~100% scale)







M3



Four-digit LCD Header(0~100% linear  display)









M4



Four-digit LCD Header  (can be specifically set )







B1



Tube-type Curved Bracket (Tube ODΦ50~Φ60)









B2



Board- type Curved Bracket







B3



Tube-type Straight Bracket (Tube ODΦ50~Φ60)







D1



Flange side vent/drain valve at the top









D2



The flange side vent/drain valve at the bottom







J



D-shaped” Joint with “ M20*1.5” External thread









N



“Kidney-shaped” Joint with 1/2-14NPT







C12



Cited Pressure Transition Joint with 1/2-14NPT,

and Stainless Steel Cited Pressure Pipe Welding in

the Rear



Explosion-proof requirements









--

Standard (no explosion)











D

explosion-proof:Exd II BT 5











i

The Ann model:Exia II CT 6



Capacitance LCD display 3051DP pressure transmitter made in China1.jpg



Factory workshop:

workshop show.jpg

Installation:




installation method.jpg

Package:

.jpg
