Product Details:
Payment & Shipping Terms:
|
| Output Signal: | 4-20mA,LCD Display | Power Supply: | 24V DC |
|---|---|---|---|
| Operating Temperature: | -40 To +140C | Skype: | Summer.cao39 |
| Name: | Differential Pressure Transmitter | Electric Interface: | 1/2NPT OR M20*1.5 |
| Explosion-proof: | ExdIICT6 | Process Connection: | 1/4NPT Or 1/2NPT |
| Protocol: | Hart |

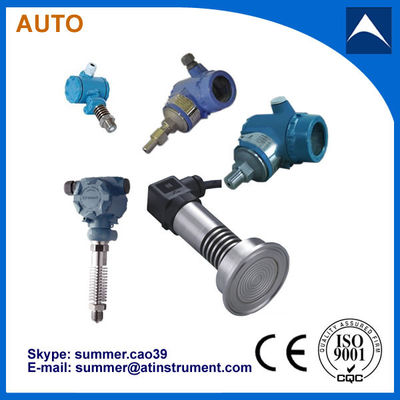

Sanitary Pressure Transmitter Used in Food industry With Low Cost
Introduction
Differential pressure transmitter is a measure of the difference between the two ends of the
transmitter ,output standard signal (eg 4 ~ 20mA, 1-5V) differential pressure transmitter and
pressure transmitter with the general difference is that there are two pressure ports, the differential pressure transmitter is generally divided into positive and negative terminal end,
under normal circumstances, Positive pressure side pressure should be greater than the
negative pressure section.
Features:
1. Process Fluid: Liquid, Gas, Vapor
2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: ia II C T6
11.Explosion proof: d II B T5
Differential pressure transmitter for measurement of liquids, gases and steam level,density and
pressure, and then convert it into 4- 20mA DC current signal output. 3051DP BRAIN can also
be handheld or CENTUM CS / μXL or HART 275 handheld communicate with each other,
through the setting and monitoring them.
01, advanced terminals, the unique 30 degree angle
02, high-quality cited pressure fittings (stainless steel variety of medium, compatible with a variety of media, performance and stability)
03, LCD display meter intelligent, clear reading.
04,High precision sensor, diaphragm made of 316L
|
Name |
Specification code |
Explanation |
||
|
3051GP |
|
Pressure Transmitter
|
||
|
|
3 |
(0.013-0.075)bar |
||
|
4 |
(0.062-0.374)bar |
|||
|
5 |
(0.31-1.868)bar |
|||
|
6 |
(1.17-6.9)bar |
|||
|
7 |
(3.45-20.68)bar |
|||
|
8 |
(11.7-68.90)bar |
|||
|
9 |
(34.8-206.8)bar |
|||
|
0 |
(68.9-413.7)bar |
|||
|
Output Signal |
E |
analog type 4-20mA |
||
|
S |
4-20mA, HART Protocol Digital Communication |
|||
|
Wetted Parts Material |
|
Flange/Joint |
Exhaust/Drain Valve |
Diaphragm |
|
22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel |
|
|
23 |
Hastelloy C-276 |
|||
|
24 |
Tantalum |
|||
|
Mounting Bracket |
B1 |
Tube-type Curved Bracket (Tube ODΦ50~Φ60) |
||
|
B2 |
Board- type Curved Bracket |
|||
|
B3 |
Tube-type Straight Bracket (Tube ODΦ50~Φ60) |
|||
|
Display Header (optional) |
M2 |
Linear Pointer Header (0~100% scale) |
||
|
M3 |
Square Root Instruction Header(0~100% scale) |
|||
|
M4 |
LCD Header(0~100% linear display) |
|||
|
Process Flange |
D |
The liquid discharge / exhaust at the back |
||
|
D1 |
The liquid discharge / exhaust at the side top |
|||
|
D2 |
The liquid discharge / exhaust at the side bottom |
|||
|
Flange Joint |
J |
“D-shaped” Joint with “ M20*1.5” External thread |
||
|
|
N |
Joint with 1/2-14NPT taper pipe thread waist type |
||
Package Size: Length200mm *Width 230mm *high 280mm
Packaged Weight: 4.5 kg
Certification
Installation:
Package:
Why choose me?
1.Flexible:what you want, what we make.
2.Creative:R&D hi-tech products for the market.
3.Professional:20 years experience on R&D pressure transmitter products since1994.
4.Responsible:The warranty period of 18months.
5.Competitive price and good quality.
Customers's business is our business.
