Product Details:
Payment & Shipping Terms:
|
Power Supply: | 24V DC | Measure Range: | 0-1g.cm3,0-2g/cm3,0-3g/cm3 |
---|---|---|---|
Temperature: | 0-100C | Output Signal: | 4-20mA,LCD Display |
Skype: | Summer.cao39 | Commnuiaction Protocol: | Hart |
summary

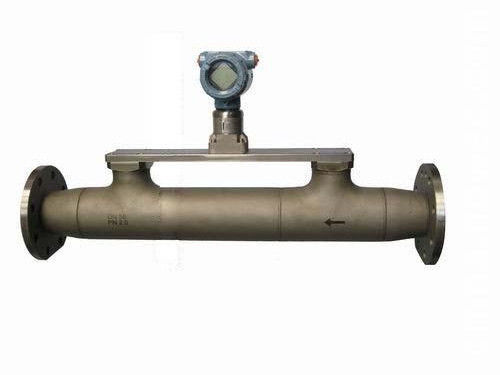

Online density meter can be used for online density measurement of various liquid and liquid mixture. It is widely applied to the petrochemical industry, food industry, dairy industry, paper industry, chemical industry, biopharmaceutical industry and other production sites.
Features
Technical Parameters
Current Output |
4 ~ 20mA |
Digital Signal |
HART protocol |
Power Supply |
16 ~ 30V DC (24V DC is recommended) |
Density Range |
0 to 2g/cm3,0 to 3g/cm3 |
Accuracy |
0.001g/cm3 |
Resolution |
0.0005g/cm3 |
Temperature Range |
0 ~ 100 ℃ |
Temperature Accuracy |
0.2 ℃ |
Ambient Temperature |
-10 ~ 60 ℃ |
Humidity Range |
0 ~ 90% |
Order sheet
Name |
Specification code |
Explanation |
Range |
05 |
0.5-2g/cm3 min:0-0.005g/cm3 |
10 |
1-2.5g/cm3 min:0-0.005g/cm3 |
|
20 |
2-5g/cm3 min:0-0.005g/cm3 |
|
Wetted parts material |
B |
316L stainless steel |
H |
Hartz alloy |
|
T |
Tantalum |
|
Installation method |
Z |
Top mounted |
C |
Side mounted |
|
Y |
Other -specify |
|
Length of the probe |
1 |
500mm |
2 |
Other -specify |
|
Process connection |
H8 |
DN50 |
H10 |
DN80 |
|
H12 |
DN100 |
|
H14 |
DN125 |
|
Filling liquid |
1 |
Silicone oil |
2 |
Glycerol and water |
|
3 |
Other -specify |
|
Electrical interface |
A |
1/2-14NPT |
B |
M20*1.5 |
|
Output |
0 |
4~20mA output(HART) |
Tank adapter |
Y |
Yes |
N |
No |
Remarks
When ordering, please specify the length of body, sensor
spacing, the medium, the range and the site conditions,
Installation
Sampling device
