Product Details:
Payment & Shipping Terms:
|
| Output Signal: | 4-20mA,LCD Display,pulse Output | Power Supply: | 24V DC,battery |
|---|---|---|---|
| Pressure: | 1.6-4.0MPa | Skype: | Summer.cap39 |
| Measuring Medium: | Superheated Steam, Saturated Steam, Compressed | Communication Interface: | RS485 |
| Communication Protocol: | Modbus |

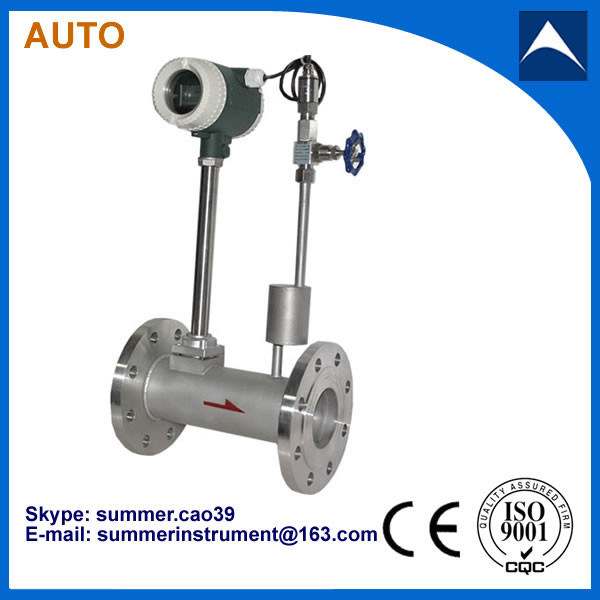

Vortex flow meter is based on Carmen (Karman) vortex principle,it can measure the gas,
steam or volume flow rate of the liquid, volume flow of standard conditions or mass flow .Also
it can be applied as a flow transmitter for automation and control systems.
|
executive standard |
Vortex flow sensor(JB/T9249-1999) |
|||
|
vertification regulation |
Vortex flow meter(JJG1029-2007) |
|||
|
Flow meter classification |
Vortex sensor, Smart display vortex flow meter,Temperature and pressure compensation vortex flow meter, insertion type vortex flow meter
|
|||
|
Medium |
Steam, compressed air, coal gas, liquid and other high-velocity medium |
|||
|
Meter diameter and connections |
DN15-DN300 flange connection or flange clamp |
|||
|
|
DN200-DN1500 is insertion type |
|||
|
Flange Standard |
GB/T9119-2000,Standard ANSI, standard JIS can be customized |
|||
|
Power supply |
24VDC or 3.6V Lithium batteries,Power Consumption <.5W |
|||
|
Output |
4-20mA or pulse output |
|||
|
communication interface |
RS485communication,or MODBUS-RTUcommunication. |
|||
|
Accuracy Grade |
Liquid |
±1.0%R(Pipeline)±2%(Plug-in) |
||
|
|
Gas or steam |
±1.5%R(Pipeline)±2.5%(Plug-in) |
||
|
Repeatability |
Lliquid |
≤0.2% |
||
|
|
Gas or steam |
≤0.5% |
||
|
Range ratio |
1:10-1:20 |
|||
|
Using condition |
Medium temperature |
T2(medium temperature type) |
-40℃~+280℃ |
|
|
|
|
T3(High temperature type) |
280℃~+350℃ |
|
|
|
pressure |
1.6MPa ,2.5MPa,4MPa |
|
|
|
|
Ambient temperature |
-20℃~+60℃ |
||
|
|
Atmospheric pressure |
86KPa~106KPa |
||
|
Meter diameter(mm) |
Pipeline |
|
|
|
Liquid measuring range(m³/h) |
Gas Measurement Range(m³/h) |
|
DN20 |
1.2-12 |
6-50 |
|
DN25 |
1.6-16 |
8-60 |
|
DN32 |
2-20 |
12-120 |
|
DN40 |
2-30 |
20-200 |
|
DN50 |
3-50 |
30-300 |
|
DN65 |
18-180 |
50-500 |
|
DN80 |
15-150 |
70-700 |
|
DN100 |
20-200 |
100-1000 |
|
DN125 |
36-360 |
150-1500 |
|
DN150 |
50-500 |
200-2000 |
|
DN200 |
100-1000 |
400-4000 |
|
DN250 |
150-1500 |
600-6000 |
|
DN300 |
200-2000 |
1000-10000 |
|
DN350 |
300-3000 |
1500-15000 |
|
DN400 |
350-3500 |
1800-18000 |
Application area
Vortex flow meters are widely used in large, medium and small variety of pipes ,for drainage,
industrial recycling, sewage treatment, oil and chemical reagents .As well as measuring
compressed air, saturated and superheated steam metering,natural gas.
Gas: air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas,
ammonia gas etc.
Steam: superheated steam, saturated steam.
Liquid: water, oil
