Product Details:

Place of Origin: Yantai
Brand Name: AUTO
Certification: CE,ISO9001,Explosion-proof
Model Number: 80GFM series

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: USD400
Packaging Details: carton or as customer required Non-contact compact horn type sanitary radar level meter for solid and caustic level transmitter
Delivery Time: 5-6days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50000per year Non-contact compact horn type sanitary radar level meter for solid and caustic level transmitter
Detailed Product Description
Power Supply: 24VDC/220VAC Application: Liquid Or Solid
Protocol: Hart/RS485 Output Signal: 4-20mA
Display: LCD Display Precision: 3mm
Name: Radar Level Meter Range: 0-70m
Temperature: -40~250℃ / -40~150℃ Connect: Flange/thread

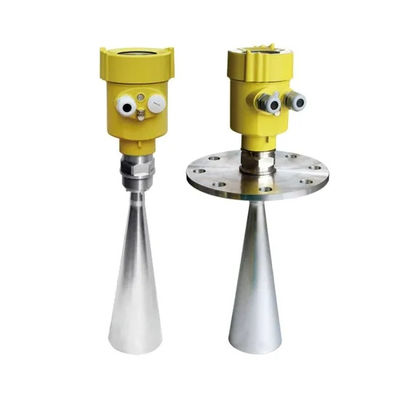

Radar Level Meter Automatic Blowback Device for the powder media



radar level meter


Radar Level Meter Automatic Blowback Device for the powder media


Product description
ATRD90 Series Radar Level Sensor is high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, solid silos,liquid.

The characteristics of radar level transmitter
1. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.


Product detail of radar level transmitter

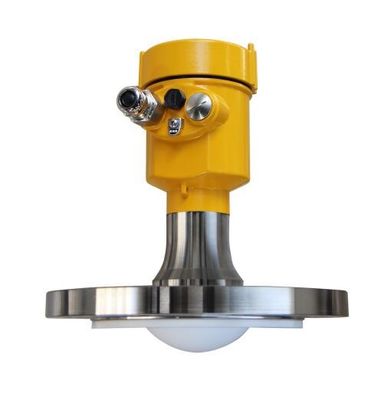

Radar Level Meter Automatic Blowback Device for the powder media
Radar Level Meter Automatic Blowback Device for the powder media

Radar Level Meter Automatic Blowback Device for the powder media
Radar Level Meter Automatic Blowback Device for the powder media




Guided Wave Radar Level Transmitter ,Pulse Radar Level Meter ,Radar Level SensorGuided Wave Radar Level Transmitter ,Pulse Radar Level Meter ,Radar Level Sensor

Radar Level Meter Automatic Blowback Device for the powder media
Model selection


Model ATRD- 901/ 902/ 903 / 904/ 905/ 906

P Standard (Non-explosion-proof)
I Intrinsically safe (Exia IIC T6 Ga)
G Intrinsically safe type, Flameproof (Exd (ia) IIC T6 Gb)

Process Connection / material

G Thread stainless steel 304
N Thread stainless steel 304
A Flange stainless steel 304
B Flange stainless steel Universal joint Nickel plated carbon steel
C DN100 / PP / 304 / / Flange stainless steel Universal joint Nickel plated carbon steel
D DN125 / PP / 304 / / Flange stainless steel Universal joint Nickel plated carbon steel
E DN150 / PP / 304 / / Flange stainless steel Universal joint Nickel plated carbon steel
H DN250 / PP / 304 / / Flange stainless steel Universal joint Nickel plated carbon steel
Y Special customization

Antenna type / material

A Horn antenna Φ46mm/stainless steel 304
B Horn antenna Φ76mm/stainless steel 304
C Horn antenna Φ96mm/stainless steel 304
D Horn antenna Φ121mm/stainless steel 304
E Parabolic antenna Φ196mm/stainless steel 304
F Parabolic antenna Φ242mm/stainless steel 304
G Special customization

Seal / Process Temperature

V Viton/(-40~150) ºC
K Kalrez/(-40~250) ºC

Output

2 (4~20)mA/24V DC 2 wire
3 (4~20)mA/24V DC/HART 2 wire
4 (4~20)mA/220V AC/ 4 wire
5 RS485/Modbus

Shell / Protection Class

L Aluminum /IP67
Q Stainless steel 316L/IP67

Cable Entry

M M20 x l. 5
N ½ ″NPT

Display Programming

V With
X Without


Application of radar level transmitter
Radar Level Meter Automatic Blowback Device for the powder media
 Radar Level Meter Automatic Blowback Device for the powder media
Custmer success cases for radar level transmitter
Radar Level Meter Automatic Blowback Device for the powder media

Radar Level Meter Automatic Blowback Device for the powder media
Radar Level Meter Automatic Blowback Device for the powder media
