| Temperature: | -20 To 120C | Process Connection: | M20*15 Or As Required |
|---|---|---|---|
| Range: | 0 - 4.0 MPa ~ 0 - 25.0 MPa | Medium: | Gas,liquid |
| Skype: | Summer.cao39 | ||
| High Light: | Capacitative Type 4 20mA Differential Pressure Transmitter with HART,4 20mA Differential Pressure Transmitter with HART,4 20mA Differential Pressure Transmitter |
||

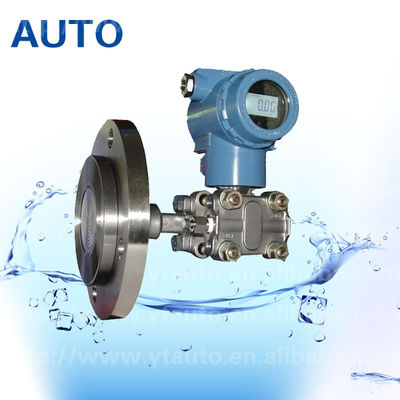

Capacitative Type 4 20mA Differential Pressure Transmitter with HART with low cost
Specifications:
Process Fluid:Display:
Liquid, Gas, Vapor 4 Digits progr ammable & 0-100% Bargraph
Application:Display Unit:
Differential Pressure, Gauge Pressure, Standard 22 engineering unit
Absolute Pressure 4 Digits progr ammable for special unit
Measuring Range:Keyboard:
( Minimum) 0 - 0.125 kPa ~ 0 - 1.5 kPa 3 keys from internal for Pr ogramming
( Maximum) 0 - 4.0 MPa ~ 0 - 25.0 MPa
Turn Down Ratio:Current Output:
1 : 100 4 - 20 mA 2 wires Hart Protocol
Accuracy:
+/- 0.075% of span Rohm=(Vdc-9)*50
Stability:Power Supply:
+/-0.15% of URL for 2 years 24 V DC
Working Temperature:Damping Adjustment:
-25 to +95 C 0 - 32 Second
Max. Pressure: Response Time:
40 MPa 200 ms
Material:Mounting:
Flange/AdaptersBracket on 2" Pipe
Stainless Steel 304 / Stainless SteelHumidity Limits:
316 0 to 100% Relative Humidity
Drains/Vents Turn on Time:
Stainless Steel 304 / Stainless Steel 316 2 Seconds with minimum damping
Diaphragms Zero calibration:
Stainless Steel 316L / Hastelloy B / Automatic zero calibration by press button
Hastelloy C / Monel / Tantalum
Wetted O-Rings Electrical Connections:
Buna N / Viton / PTFE 1/4" NPT ( M20 Conduit Threads )
Bolt s & Nut s Temperature Effect:
Carbon Steel / Stainless Steel 316 +/-0.18% of span per 20 C
Mounting Bracket Vibration Eff ect:
Carbon steel / Stainless Steel 304 / 316 +/-0.05% of URL per g to 200 Hz in anyaxis
Name / Tag Plate EMI/RFI Effect:
Stainless Steel 304 / Stainless Steel 316 Follow SAMA PMC 33.1 from 20 to 1000
Converter HousingMHz and for field strengths up to 30 V/m
Low copper cast aluminum alloy withProcess connections:
polyurethane, light blue paint 1/4 - 18 NPT
Fill Fluid1/2 - 14 NPT( with Adapter )
Silicone / Fluorine OilAmbient Temperature:
Enclosure:-25 to +80 C
IP65Dimensions:
Intrinsically Safe: ia Ⅱ C T6 102 mm ( W ) * 188 mm ( H ) * 130 mm
Explosion proof: d ⅡB T5
Installation
Certificate:
Packing:
