Product Details:
Payment & Shipping Terms:
|
| Power Supply:: | 9-36V DC | Output:: | 4 - 20 MA 2 Wires Hart Protocol |
|---|---|---|---|
| Process Fluid:: | Liquid, Gas, Vapor | Flange:: | DN50 DN80 DN100 |
| Diaphragm:: | 316L ,HC, Tantalum | Range:: | 635-70380 MmH2O |
| Working Temperature:: | -25 To +240 C | Electric Interface:: | 1/2NPT OR M20*1.5 |

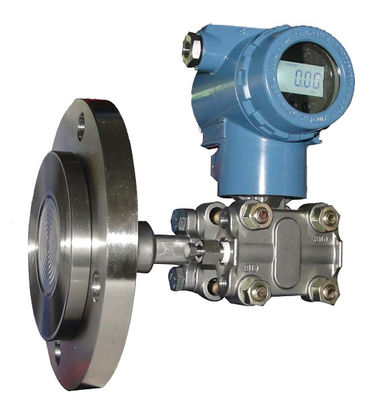

Flange Mounted Differential Pressure Level Transmitter Usd for sugar mills
Product Description
3051LT level transmitter used to measure liquids containing solids and sediment level and density, and then transformed into 4-20mADC signal output. 3051LT can communicate with each other with a HART Communicator, through their set, monitor and so on.
Technical Parameter
Max ref accuracy:±0.075%calibration range
Stability:6months,±0.1%URL
Static pressure:13.79Mpa
Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
stability:6months,±0.1%URL
Damping time constant:time constant is adjustable, in 0.1 second increments from a minimum to 16 seconds
Order sheet
|
Name |
Specification code |
Explanation |
||
|
3051LT |
|
Level transmitter |
||
|
|
4 |
635-3810 mmH2O |
||
|
5 |
3175-19090 mmH2O |
|||
|
6 |
11730-70380 mmH2O |
|||
|
Output Signal |
E |
4-20mA |
||
|
S |
4-20mA, HART Protocol Communication |
|||
|
Installation flange |
H5 |
2” (DN50) |
||
|
A8 |
3”(DN80) |
|||
|
B10 |
4”(DN100) |
|||
|
Wetted Parts Material |
|
Flange/Joint |
Exhaust/Drain Valve |
Diaphragm |
|
22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel |
|
|
23 |
Hastelloy C-276 |
|||
|
24 |
Tantalum |
|||
|
Display Header (optional) |
M2 |
Linear Pointer Header (0~100% scale) |
||
|
M3 |
Square Root Instruction Header(0~100% scale) |
|||
|
M4 |
LCD Header( linear display) |
|||
|
Process Flange |
D1 |
The liquid discharge / exhaust at the side top |
||
|
D2 |
The liquid discharge / exhaust at the side bottom |
|||
