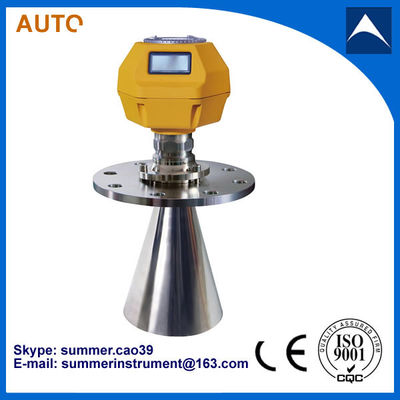

4-20mA radar level transmitter fuel tank meter
Radar Level Gauge is a liquid (material) level recording instrument in the measurement.
The microwave pulse is sent by the antenna,and then is reflected by the material surface , then is received by the radar systems.
Then is sent to the electronic circuit, the microprocessor can identify the microwave pulse echo regenerate the material or the surface of the liquid.
The correct signal is done by intelligent software, up to millimeter accuracy, nonapplicable harsh environments.
The characteristics of radar level transmitter
1. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
2. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
3. Serious dust environment on the high level meter work has little effect.
4. A shorter wavelength, the reflection of solid surface inclination is better.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. The measuring range is smaller, for a measurement will yield good results.
7. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
8. High frequency, measurement of solid and low dielectric constant of the best choice.
|Product name:||26G radar level meter|
|The ground terminal||Stainless steel|
|Cable entrance / plug||
One M20xl.5 cable entrance
One blind plug
|Terminal||Conductor cross section 1.0m|
|The output signal||(4 ~ 20) mA/RS485|
Constant current output; 20. 5mA 22mA
|The integral time||(0 ~ 50) s, adjustable|
|Blind area||the ends of the antenna|
|The maximum distance measurement||70 meters|
|Communication interface||HART communication protocol|
|The measurement interval||about 1 second (depending on the parameter settings)|
All kinds of corrosive liquid
Solid material, Strong dust
|Solid material, Strong dust||
Solid particles, Powder
|Hygienic liquid storage,Corrosive container|
|Measuring Range||10 meters||30 meter||70 meters||70 meters||30 meters||20 meters|
|Process Connection||Thread, Flange||Thread, Flange||Universal Flange||Universal Flange||Thread, Flange||Flange|
-40°C ~ 120°C
-40°C ~ 250°C
|-40°C~ 250°C||-40°C~ 250°C||
-40°C ~ 150°C
|Process Pressure||-0.1~0.3 MPa||-0.1 ~ 4.0 MPa||-0.1 ~ 0.1 MPa||-0.1 ~ 0.1 MPa||-0.1 ~ 4.0MPa||-0.1 ~ 4.0MPa|
|Accuracy||± 5mm||± 3mm||± 15mm||± 15mm||± 10mm||± 3mm|
Product detail of radar level transmitter
Application of radar level transmitter
Customer success cases for radar level transmitter
Packaging and Shipping
We use carton to pack the products for norminal delivery. We have eatalished nice relationships with so many expresses like DHL,TNT, FedEx , UPS etc., forwarders, and shipping companies. Ensure fast and safe delivery
The delivery time is 5-7 days after receive your payment.
