electromagnetic water meter salt water flow meter with 4-20mA

China electromagnetic water meter salt water flow meter with 4-20mA supplier
electromagnetic water meter salt water flow meter with 4-20mA supplier electromagnetic water meter salt water flow meter with 4-20mA supplier electromagnetic water meter salt water flow meter with 4-20mA supplier electromagnetic water meter salt water flow meter with 4-20mA supplier electromagnetic water meter salt water flow meter with 4-20mA supplier

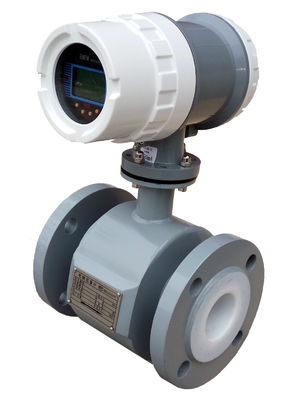

Large Image :  electromagnetic water meter salt water flow meter with 4-20mA

Product Details:

Place of Origin: China
Brand Name: AUTO
Certification: CE,ISO9001:2008
Model Number: WFD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc or as your required
Price: USD197-300/pc
Packaging Details: Carton
Delivery Time: 3-7days after confirm orer
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1500
Detailed Product Description
Power Supply: 24V DC,220V AC,battery Pressure: 1.6-4.0MPa
Temperature: -20 To 350C Output Signal: 4-20mA,LCD Display,pulse Output
Measure Range: DN10-DN2000 Skype: Summer.cap39
Measuring Medium: Water And Other Conductive Liquid


electromagnetic water meter salt water flow meter with 4-20mA


A magnetic flow meter, also referred to as mag flow meter or magmeter, is a volumetric flow meter that measures liquids or liquid slurries that have a minimum conductivity of 5 µS/cm. Magnetic flow meters will typically not work with hydrocarbons, distilled water, non-aqueous solutions and non-conductive solutions.

electromagnetic water meter salt water flow meter with 4-20mA

Typical Industries Where Magnetic Flow Meters are Used

  • Water / Wastewater Industry
  • Food and Beverage
  • Metals
  • Brewing, Distilling, and Wine makening
  • HVAC
  • Chemical
  • Pulp and Paper
  • Pharmaceutical
  • Mining, Mineral Processing

Application area

1. Drinking water supply, water supply, reservoir and pumping station etc.

2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.

3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.

4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.

5. Sewage, industrial sewage discharge, sewage etc.

6.Control of metal industrial pump,cooling water and the flow of water.

7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
electromagnetic water meter salt water flow meter with 4-20mA

Magnetic flow meters require a minimum medium conductivity for the technology to measure flow. This chart provides a general guideline on conductivity of common media

electromagnetic water meter salt water flow meter with 4-20mA

Flow rate:

Electromagnetic flow meter flow rate range
Size Min flow m3/h Normal flow rate m3/h Max flow m3/h
DN15 0.06 0.19 3.18 6.36
DN20 0.11 0.33 5.65 11.31
DN25 0.17 0.53 8.83 17.67
DN32 0.28 0.86 14.47 28.94
DN40 0.45 1.35 22.61 45.23
DN50 0.71 2.12 35.35 70.68
DN65 1.19 3.58 59.72 119.45
DN80 1.81 5.42 90.47 180.95
DN100 2.82 8.48 141.37 282.74
DN125 4.41 13.25 220.85 441.71
DN150 6.36 19.08 318.08 636.17
DN200 11.31 33.92 565.48 1130.97
DN250 17.67 53.01 883.57 1767.14
DN300 25.44 76.34 1272.34 2544.69
DN350 34.63 103.91 1731.8 3463.6
DN400 45.23 135.71 2261.94 4523.89
DN450 57.25 171.76 2862.77 5725.55
DN500 70.68 212.05 3534.29 7068.58
DN600 101.78 305.36 5089.38 10178.76
DN700 138.54 415.63 6927.21 13854.42
DN800 180.95 542.86 9047.78 18095.57

electromagnetic water meter salt water flow meter with 4-20mA

Order sheet

Name Specification code Explanation
Instrument type   remote display magnetic flow meter for sugar cane juice with 4-20ma water flowmeter
Diameter code AT-xxx For example:100 represents DN100
Electrode form 1 Standard stationary type









Electrode material

0 Stainless steel(316L)
1 Platinum Pt
2 Hastelloy B(HB)
3 Tantalum Ta
4 Titanium Ti
5 Hastelloy C(HC)







Lining material

3 Chloroprene rubber
4 Polyurethane rubber
5 F4(PTFE) polytetrafluoroethylene
6 F46(FEP)polyperfluoroethylene-propylene







Rated pressure(MPa)

1.6 DN10-80
1.6 DN100-150
1.0 DN200-1000
0.6 DN1100-2000
0.25 DN2200



Operating temperature

E <80ºC
H <120ºC
Grounding   Built-in grounding electrode
Grade of protection 0 IP65
1 IP68
Converter type 0 Integral type
1 Split type
Case material 0 Carbon steel
1 Stainless steel
Instrument flange 0 Carbon steel
1 Stainless steel
Installing timing flange 0 Without
1 With
Power supply source 0 220VAC
1 24VDC


Installation :

electromagnetic water meter salt water flow meter with 4-20mA

electromagnetic water meter salt water flow meter with 4-20mA


calibration line:

electromagnetic water meter salt water flow meter with 4-20mA


electromagnetic water meter salt water flow meter with 4-20mA

real picture:

electromagnetic water meter salt water flow meter with 4-20mA


electromagnetic water meter salt water flow meter with 4-20mA



electromagnetic water meter salt water flow meter with 4-20mA
electromagnetic water meter salt water flow meter with 4-20mA



electromagnetic water meter salt water flow meter with 4-20mA
