Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 24V DC,220V AC,battery | Pressure: | 1.6-4.0MPa |
|---|---|---|---|
| Temperature: | -20 To 350C | Output Signal: | 4-20mA,LCD Display,pulse Output |
| Measure Range: | DN10-DN2000 | Skype: | Summer.cap39 |
| Measuring Medium: | Water And Other Conductive Liquid |
Application area
1. Drinking water supply, water supply, reservoir and pumping station etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc.
6.Control of metal industrial pump,cooling water and the flow of water.
7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
Flow rate:
| Electromagnetic flow meter flow rate range | ||||
| Size | Min flow m3/h | Normal flow rate m3/h | Max flow m3/h | |
| DN15 | 0.06 | 0.19 | 3.18 | 6.36 |
| DN20 | 0.11 | 0.33 | 5.65 | 11.31 |
| DN25 | 0.17 | 0.53 | 8.83 | 17.67 |
| DN32 | 0.28 | 0.86 | 14.47 | 28.94 |
| DN40 | 0.45 | 1.35 | 22.61 | 45.23 |
| DN50 | 0.71 | 2.12 | 35.35 | 70.68 |
| DN65 | 1.19 | 3.58 | 59.72 | 119.45 |
| DN80 | 1.81 | 5.42 | 90.47 | 180.95 |
| DN100 | 2.82 | 8.48 | 141.37 | 282.74 |
| DN125 | 4.41 | 13.25 | 220.85 | 441.71 |
| DN150 | 6.36 | 19.08 | 318.08 | 636.17 |
| DN200 | 11.31 | 33.92 | 565.48 | 1130.97 |
| DN250 | 17.67 | 53.01 | 883.57 | 1767.14 |
| DN300 | 25.44 | 76.34 | 1272.34 | 2544.69 |
| DN350 | 34.63 | 103.91 | 1731.8 | 3463.6 |
| DN400 | 45.23 | 135.71 | 2261.94 | 4523.89 |
| DN450 | 57.25 | 171.76 | 2862.77 | 5725.55 |
| DN500 | 70.68 | 212.05 | 3534.29 | 7068.58 |
| DN600 | 101.78 | 305.36 | 5089.38 | 10178.76 |
| DN700 | 138.54 | 415.63 | 6927.21 | 13854.42 |
| DN800 | 180.95 | 542.86 | 9047.78 | 18095.57 |
Order sheet
| Name | Specification code | Explanation |
| Instrument type | Intelligent electromagnetic flow meter | |
| Diameter code | xxx | For example:100 represents DN100 |
| Electrode form | 1 | Standard stationary type |
|
Electrode material |
0 | Stainless steel(316L) |
| 1 | Platinum Pt | |
| 2 | Hastelloy B(HB) | |
| 3 | Tantalum Ta | |
| 4 | Titanium Ti | |
| 5 | Hastelloy C(HC) | |
|
Lining material |
3 | Chloroprene rubber |
| 4 | Polyurethane rubber | |
| 5 | F4(PTFE) polytetrafluoroethylene | |
| 6 | F46(FEP)polyperfluoroethylene-propylene | |
|
Rated pressure(MPa) |
4.0 | DN10-80 |
| 1.6 | DN100-150 | |
| 1.0 | DN200-1000 | |
| 0.6 | DN1100-2000 | |
| 0.25 | DN2200 | |
|
Operating temperature |
E | <80ºC |
| H | <120ºC | |
| Grounding | Built-in grounding electrode | |
| Grade of protection | 0 | IP65 |
| 1 | IP68 | |
| Converter type | 0 | Integral type |
| 1 | Split type | |
| Case material | 0 | Carbon steel |
| 1 | Stainless steel | |
| Instrument flange | 0 | Carbon steel |
| 1 | Stainless steel | |
| Installing timing flange | 0 | Withou |
| 1 | With | |
| Power supply source | 0 | 220VAC |
| 1 | 24VDC | |
| Instrument range | xxx |
For example:(200)represents maximum fux corresponding to 20mA |
| Flow :200mm³/h |
Installation Site :
calibration line:
Electromagnetic flow meters for delivery:
CERTIFICATES: ATEX/CE/ISO9001/SIL3/SGS
PLEASE CONTACT ME FOR PRICE, THANKS

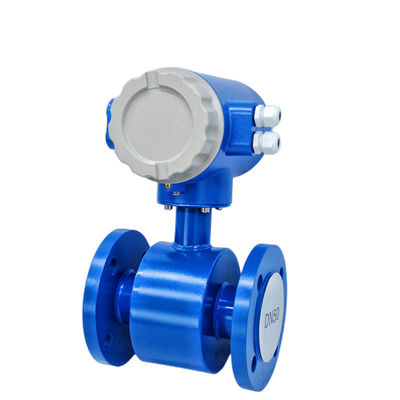

Low Price Emfm Hfd3000 Flow Meter Water Electromagnetic Flow Meter 2′′ 3′′ 4′′
