Product Details:
Payment & Shipping Terms:
|
Power Supply: | 24V DC,220V AC,battery | Pressure: | 1.6-4.0MPa |
---|---|---|---|
Temperature: | -20 To 350C | Output Signal: | 4-20mA,LCD Display,pulse Output |
Measure Range: | DN10-DN2000 | Skype: | Summer.cao39 |
Measuring Medium: | Water And Other Conductive Liquid | Product Name: | Magnetic Flow Meter |

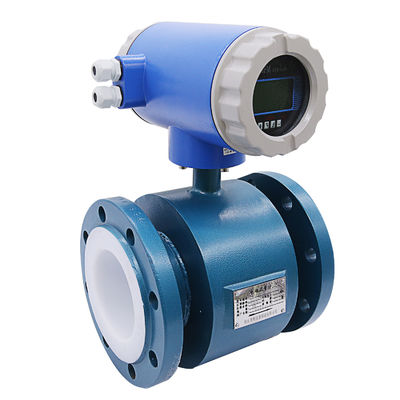

Product show
Parameters
Aperture |
10-3200 |
Excitation System |
Bidirectional Constant Flow Squarewave Excitation |
Installation Form |
Integral or split |
Lining |
Chloroprene Rubber,PTFE |
Material of Electrode |
316L,HC,HB,Titanium,Tantalum,Platiniridium |
Grounding |
Built-in Grounding Electrode |
Medium |
Conductive Liquid |
Grade of Accuracy |
0.3 ,0.5, 1.0 |
Flow Velocity |
≤15m/s |
Flange of Pipe Connection |
GB9119-2000 or GB9115-2000 |
Pipe connection |
Flange Connection |
Temperature of Medium |
Chloroprene Rubber:-10-60℃: PTFE:-10-120℃ |
Rated Boltage |
1.0MPa, 1.6MPa, 4MPa |
Cable Interface |
G1/2 Female Thread |
Category of Shielding |
IP65, IP68 |
Output Signal |
4-20mACurrent,Pulse, Warning beyond upper and lower limits |
Communication |
RS485 Protocol |
Display of Monitor |
Transient Flow,Percentage,Flow Velocity,Forward and Reverse Integrated Flux and Total Integrated Flux |
Power Supply |
220VAC, 24VDC |
Type of Application |
General Type, Waterproof Type |
Iining
lining |
Main performance |
Scope of application |
F4(PTFE) polytetrafluoroet hylene |
A plastic and chemical properties of the most stable, capable of boiling hydrochloric acid, sulfuric acid, nitric acid, and concentrated alkali and organic solvents. Not resistant to three chlorine fluoride, high temperature, high velocity fluid three chlorine trifluoride fluorine, oxygen, corrosion |
Concentrated acid and other strong corrosive medium, medium health class |
Chloroprene rubber |
The elastic properties, tensile strength, wear resistance, corrosion resistance, low concentration of acid, alkali, salt, corrosion resistance and oxidation medium |
Water, sewage, low wear of mud slurry |
Polyurethane rubber |
Strong wear resistance, corrosion resistance is poor |
The slurry, coal slurry, slurry neutral strong wear |
Installation
Conventional caliber flow range( Large caliber Advisory )
Outline dimension
Application area
1. Drinking water supply, water supply, reservoir and pumping station etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc.
6.Control of metal industrial pump,cooling water and the flow of water.
7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
Calibration:
Order sheet
Name |
Specification code |
Explanation |
Instrument type |
|
Intelligent flow meter |
Diameter code |
xxx |
For example:100 represents DN100 |
Electrode form |
1 |
Standard stationary type |
Electrode material |
0 |
Stainless steel(316L) |
1 |
Platinum Pt |
|
2 |
Hastelloy B(HB) |
|
3 |
Tantalum Ta |
|
4 |
Titanium Ti |
|
5 |
Hastelloy C(HC) |
|
Lining material |
3 |
Chloroprene rubber |
4 |
Polyurethane rubber |
|
5 |
F4(PTFE) polytetrafluoroethylene |
|
6 |
F46(FEP)polyperfluoroethylene-propylene |
|
Rated pressure(MPa) |
4.0 |
DN10-80 |
1.6 |
DN100-150 |
|
1.0 |
DN200-1000 |
|
0.6 |
DN1100-2000 |
|
0.25 |
DN2200 |
|
Operating temperature |
E |
<80℃ |
H |
<120℃ |
|
Grounding |
|
Built-in grounding electrode |
Grade of protection |
0 |
IP65 |
1 |
IP68 |
|
Converter type |
0 |
Integral type |
1 |
Split type |
|
Case material |
0 |
Carbon steel |
1 |
Stainless steel |
|
Instrument flange |
0 |
Carbon steel |
1 |
Stainless steel |
|
Installing timing flange |
0 |
Withou |
1 |
With |
|
Power supply source |
0 |
220VAC |
1 |
24VDC |
|
Instrument range |
xxx |
For example:(200)represents maximum fux corresponding to 20mA |
Flow :200mm³/h |
