Power Supply: | 24V DC,220V AC,battery | Pressure: | 1.6-4.0MPa |
---|---|---|---|
Temperature: | -20 To 350C | Output Signal: | 4-20mA,LCD Display,pulse Output |
Measure Range: | DN10-DN2000 | Skype: | Summer.cap39 |
Measuring Medium: | Water And Other Conductive Liquid |

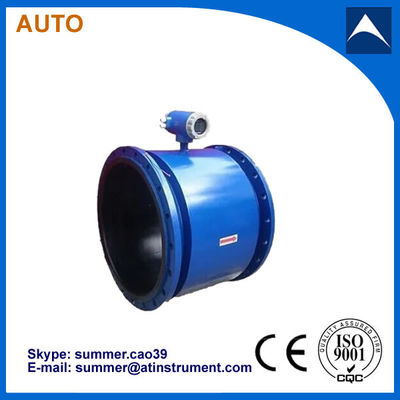

cold water magnetic flow meter with low cost
Product description:
WFD electromagnetic flowmeter, composed of sensor and converter, works based on Faraday's law of
electromagnetic induction. It is used to measure electricalconductivity of liquid or solid. Generally, the electrical
conductivity should be over 5uS/cm (electrical conductivity of tap water, raw water is about 100-500uS/cm. It
can also be used to measure various mediums like acid, alkali, saline solution, paper pulp, ore pulp
and so on, but these mediums can't contain a lot of magnetic materials and bubbles.
Applications of Magnetic Flow Meter
Technical Parameters:
Technical Performance Parameters |
|||
Caliver |
DN10~DN3000mm |
||
Nominal Pressure |
0.6~1.6MPa(special pressure can be made to) |
||
Accuracy |
±0.5%,±0.3%or±0.2% are selectable |
||
Liner material |
PTFE,PFA,F46,Neoprene,Polyurethane |
||
Electrode Type |
General type ,scraper type and replaceable type |
||
Electrode material |
Stainless steel SUS316,Hastelloy C,Titanium, Tantalum Platinumiridium, Stainless steel covered with tungsten carbide |
||
Mediem temperature |
Integrate type |
-20°C~+60°C |
|
Remote type |
Neoprene & Polyurethane Liner |
-10°C~+80°C |
|
PTFE Liner /PFA Liner /F46 Liner |
-10°C~+160°C |
||
Ambient Temperature |
-25°C ~+ 60°C |
||
Ambient Humidity |
5~100%RH(relative humidity) |
||
Medium Electrical conductivity |
≥20μ s/cm |
||
Measuring Range |
1500:1,flow rate<15m/s |
||
Structure type |
Integral type,remote type,submersible type,ex-proof type |
||
Protection Class |
IP65,IP68(optional) |
||
Ex-proof Mark |
ExmdⅡT4 |
||
Product Standard |
JB/T 9248-1999 Electormagnetic Flowmeter |
Main Performance of the electrode materials:
Main performances of the electrode materials |
|
Electrode material |
Applications |
SUS316 |
Applicable in water,sewage and corrosive mediums. Widely used in industries of petrol,chemistry,carbamide,etc |
Stainless steel covered with tungsten carbide |
Applicable in mediums of no corrosive and low abrasion. |
Hastelloy B(HB) |
Having strong resistance to hydrochloric acid of any consistance which is below bioling piont.Also resistable against vitriol,phosphate, hydrofluoricacid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. |
Hastelloy C(HC) |
Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++aStnd sea water |
Titanium |
Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid (including fuming nitric acid),organic acid,alkali etc. Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid corrosion. But if acid contains antioxidant is greatly reduce corrosion. |
Tantalum |
Having strong resistance to corrosive mediums that is similar with glass Almost is applicable to all chemical mediums. Except for hydrofluoric acid,oleum and alkali. |
Platinum-iridium |
Almost be applicable in all chemical mediums except for ammonium salt. |
Product details:
Order sheet:
Name |
Specification code |
Explanation |
Instrument type |
|
Intelligent electromagnetic flow meter |
Diameter code |
xxx |
For example:100 represents DN100 |
Electrode form |
1 |
Standard stationary type |
Electrode material |
0 |
Stainless steel(316L) |
1 |
Platinum Pt |
|
2 |
Hastelloy B(HB) |
|
3 |
Tantalum Ta |
|
4 |
Titanium Ti |
|
5 |
Hastelloy C(HC) |
|
Lining material |
3 |
Chloroprene rubber |
4 |
Polyurethane rubber |
|
5 |
F4(PTFE) polytetrafluoroethylene |
|
6 |
F46(FEP)polyperfluoroethylene-propylene |
|
Rated pressure(MPa) |
4.0 |
DN10-80 |
1.6 |
DN100-150 |
|
1.0 |
DN200-1000 |
|
0.6 |
DN1100-2000 |
|
0.25 |
DN2200 |
|
Operating temperature |
E |
<80℃ |
H |
<120℃ |
|
Grounding |
|
Built-in grounding electrode |
Grade of protection |
0 |
IP65 |
1 |
IP68 |
|
Converter type |
0 |
Integral type |
1 |
Split type |
|
Case material |
0 |
Carbon steel |
1 |
Stainless steel |
|
Instrument flange |
0 |
Carbon steel |
1 |
Stainless steel |
|
Installing timing flange |
0 |
Without |
1 |
With |
|
Power supply source |
0 |
220VAC |
1 |
24VDC |
|
Instrument range |
xxx |
For example:(200)represents maximum fux corresponding to 20mA |
Flow :200mm³/h |
